Refrigerant Pressure Sensor / Switch: Diagrams

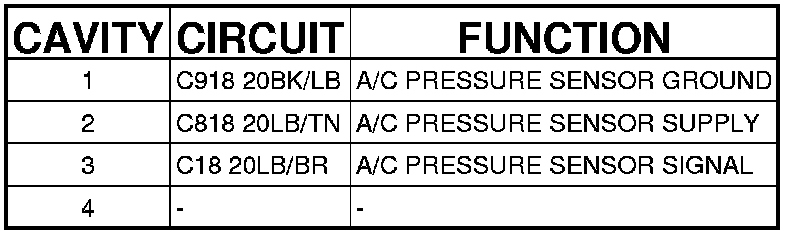

Connector - (ENGINE COMPARTMENT) 4 WAY

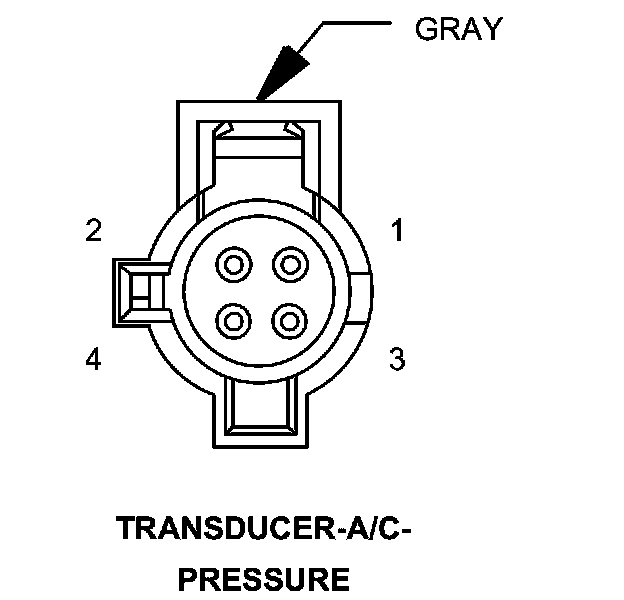

TRANSDUCER-A/C PRESSURE - (ENGINE COMPARTMENT) 4 WAY
