Home >> Jeep Truck >> 2009 >> Compass 2WD L4-2.0L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Engine >> Oil Pressure Sender >> Diagrams

Oil Pressure Sender: Diagrams

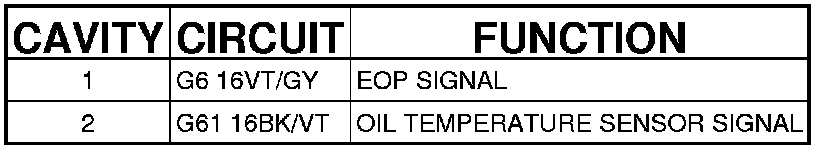

Connector (GAS) - (POWERTRAIN) 2 WAY

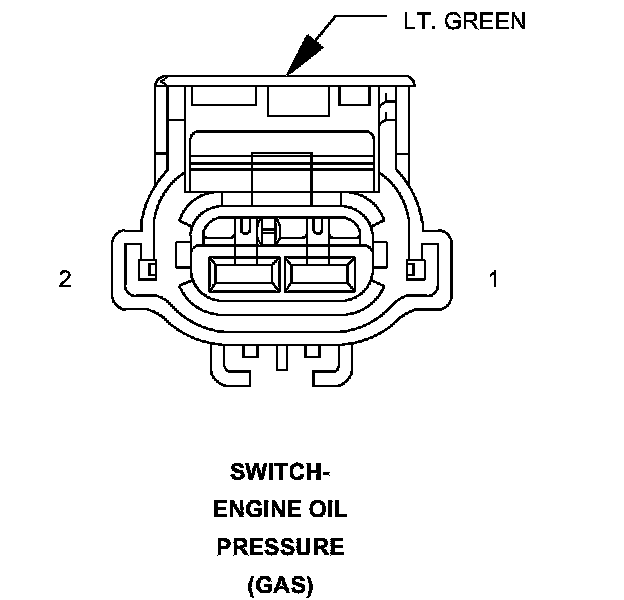

SWITCH-ENGINE OIL PRESSURE (GAS) - (POWERTRAIN) 2 WAY
