Integrated Accessory Switch Assembly: Diagrams

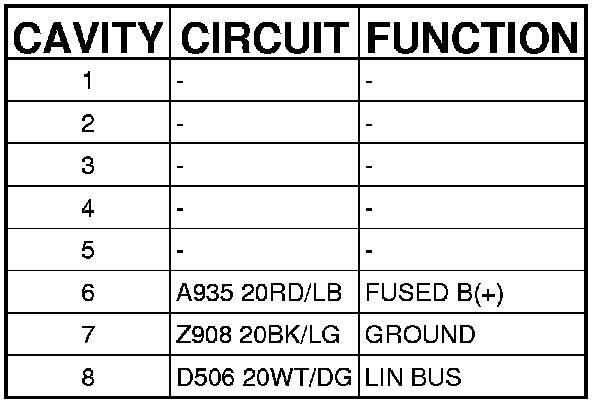

Connector - (INSTRUMENT PANEL) 8 WAY

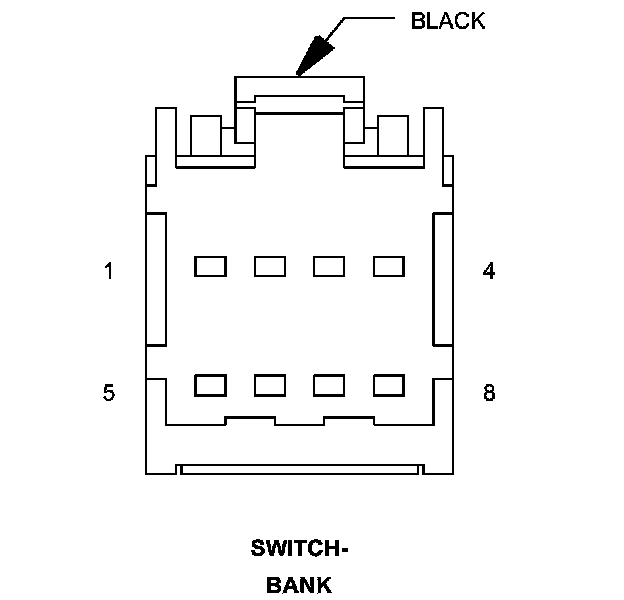

SWITCH-BANK - (INSTRUMENT PANEL) 8 WAY
