Trailer Towing Relay
>>
Diagrams
>>
Trailer Tow Brake Lamp Relay (Trailer Tow) 5 Way
Trailer Tow Brake Lamp Relay (Trailer Tow) 5 Way

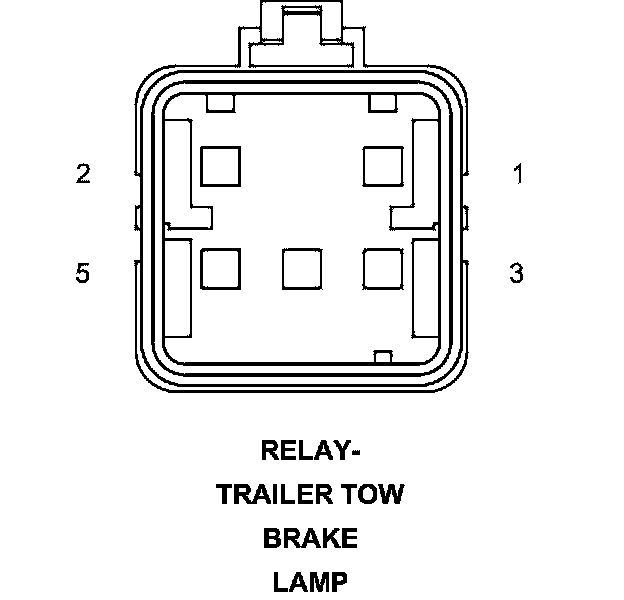

Connector - (TRAILER TOW) 5 WAY

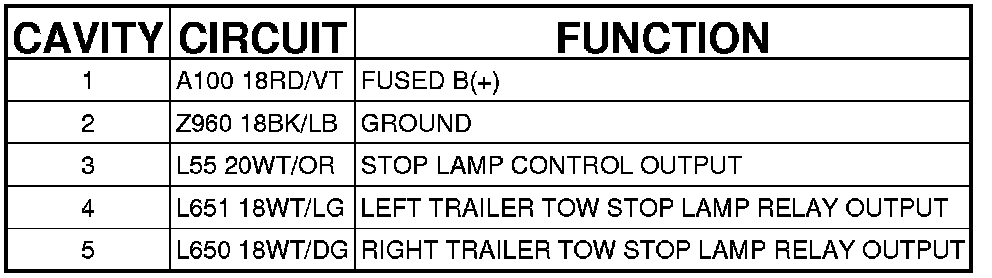

RELAY-TRAILER TOW BRAKE LAMP - (TRAILER TOW) 5 WAY
