Trailer Towing Relay
>>
Diagrams
>>
Right Trailer Tow Relay (Trailer Tow) 5 Way
Right Trailer Tow Relay (Trailer Tow) 5 Way

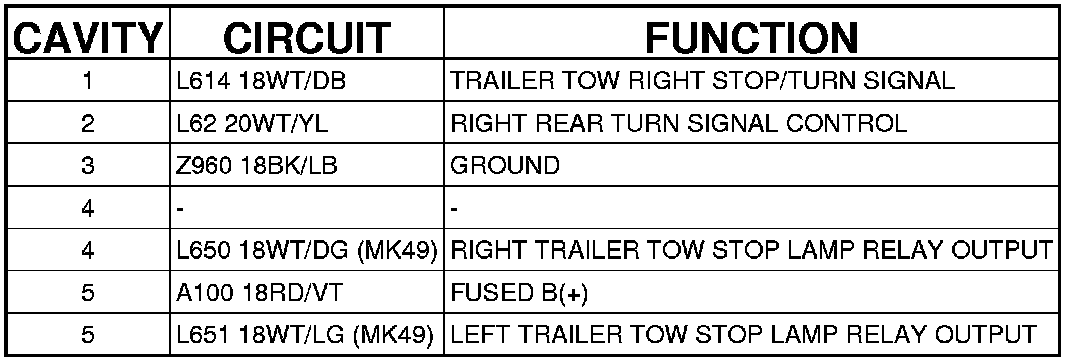

Connector - (TRAILER TOW) 5 WAY

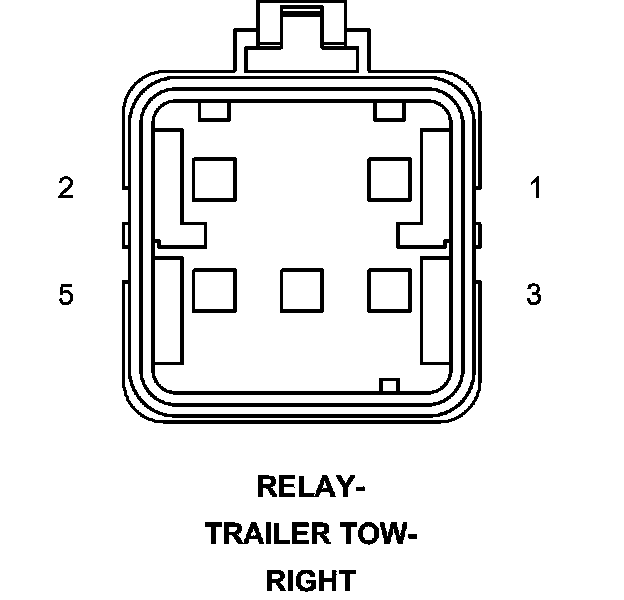

RELAY-TRAILER TOW-RIGHT - (TRAILER TOW) 5 WAY
