Home >> Jeep Truck >> 2009 >> Compass 2WD L4-2.0L >> Repair and Diagnosis >> Powertrain Management >> Fuel Delivery and Air Induction >> Fuel Injector >> Diagrams >> Fuel Injector 4 (Powertrain) 2 Way

Fuel Injector 4 (Powertrain) 2 Way

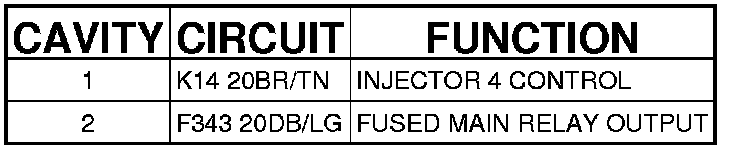

Connector (GAS) - (POWERTRAIN) 2 WAY

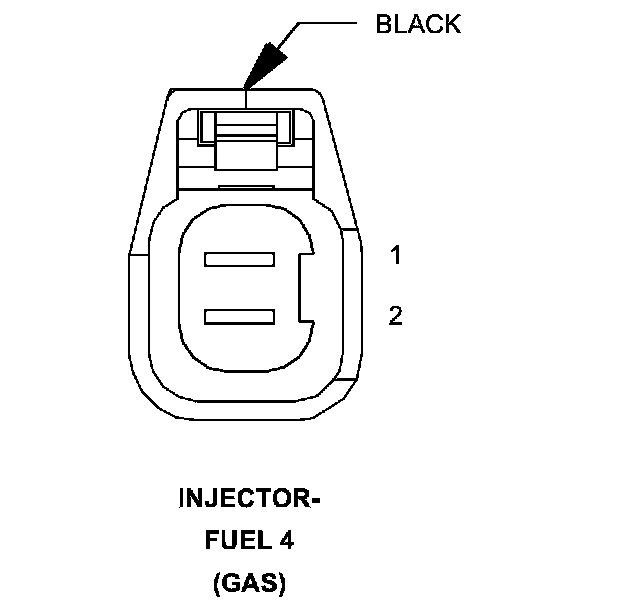

INJECTOR-FUEL 4 (GAS) - (POWERTRAIN) 2 WAY
