Fuel Injector 3 (Powertrain) 2 Way

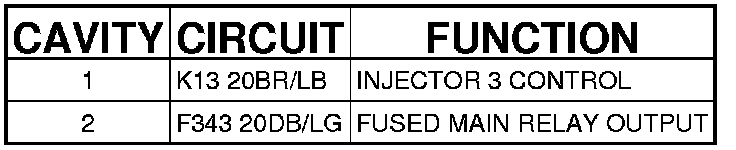

Connector (GAS) - (POWERTRAIN) 2 WAY

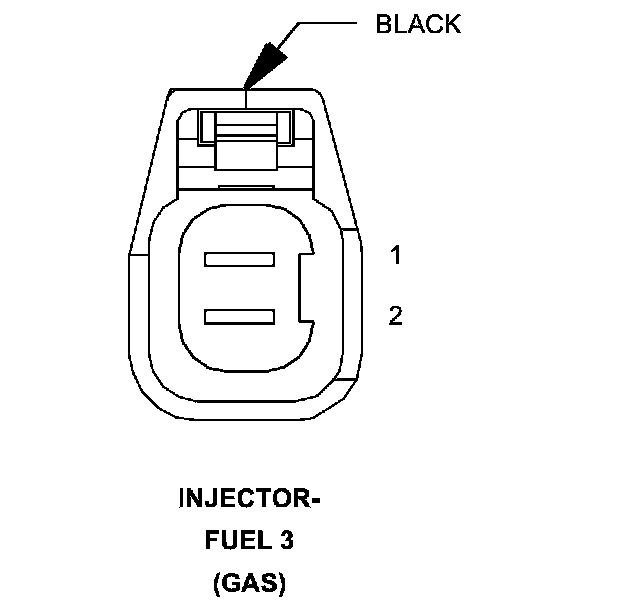

INJECTOR-FUEL 3 (GAS) - (POWERTRAIN) 2 WAY
