Leak Detector: Diagrams

Connector (EXCEPT EXPORT) - (BODY/DIFFERENTIAL VENT JUMPER) 2 WAY

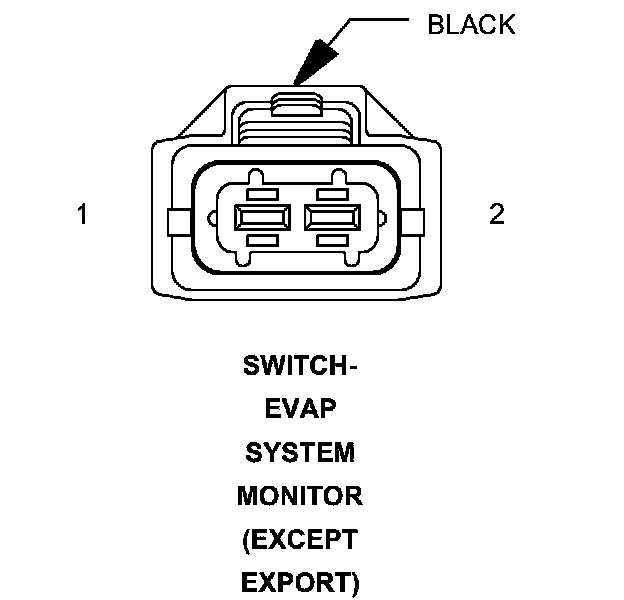

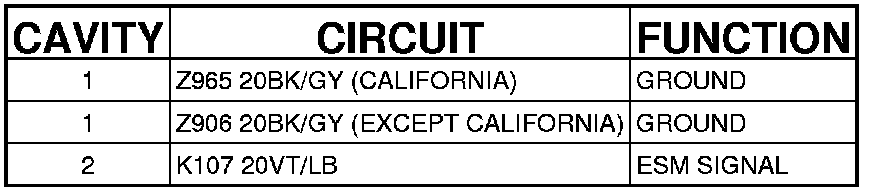

SWITCH-EVAP SYSTEM MONITOR (EXCEPT EXPORT) - (BODY/DIFFERENTIAL VENT JUMPER) 2 WAY
