Secondary Air Pump Assembly C2 (Engine Compartment) 2 Way

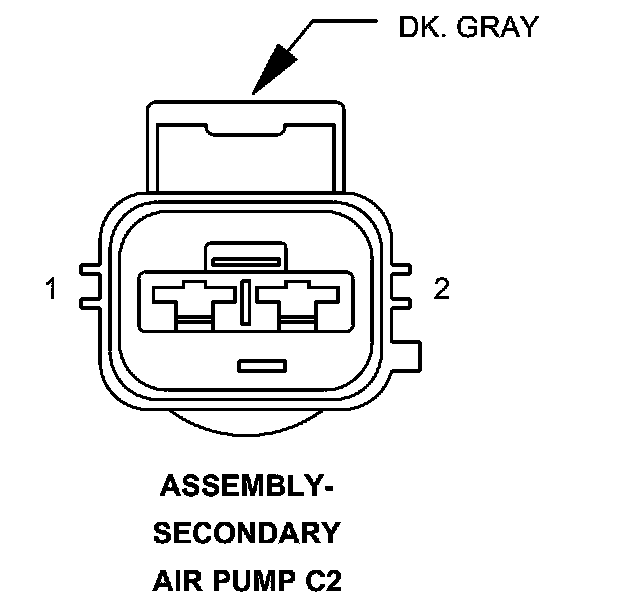

Connector C2 - (ENGINE COMPARTMENT) 2 WAY

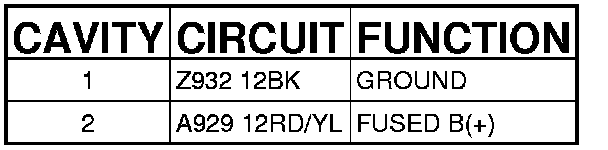

ASSEMBLY-SECONDARY AIR PUMP - (ENGINE COMPARTMENT) 2 WAY
