Secondary Air Pump Assembly C1 (Engine Compartment) 4 Way

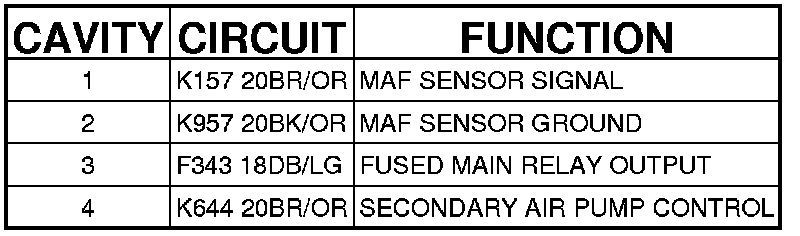

Connector C1 - (ENGINE COMPARTMENT) 4 WAY

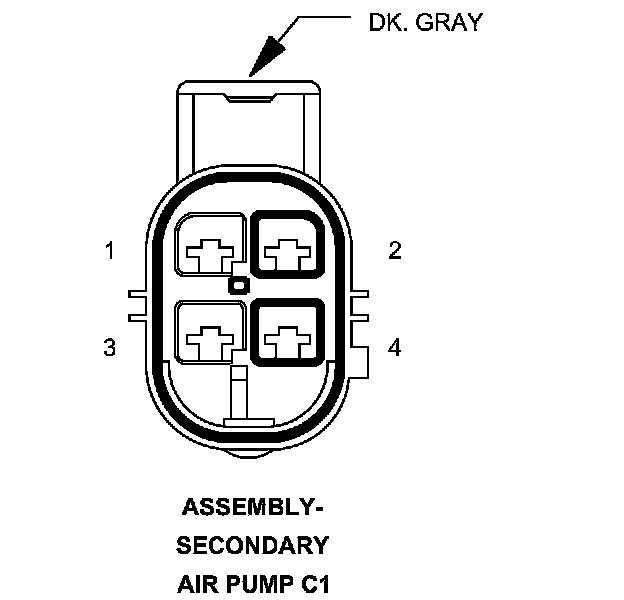

ASSEMBLY-SECONDARY AIR PUMP - (ENGINE COMPARTMENT) 4 WAY
