Camshaft Position Solenoid 1/1 (Powertrain) 2 Way

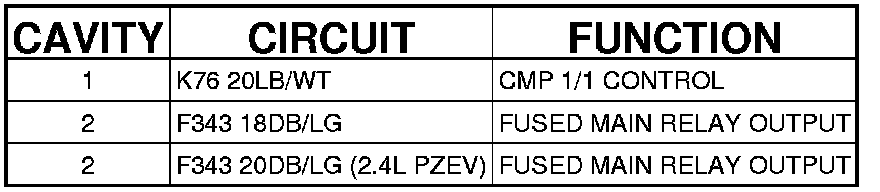

Connector (GAS) - (POWERTRAIN) 2 WAY

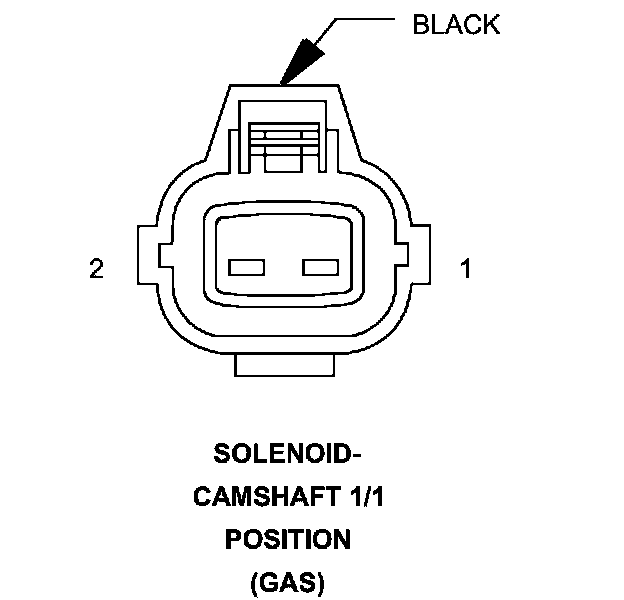

SOLENOID-CAMSHAFT 1/1 POSITION (GAS) - (POWERTRAIN) 2 WAY
