Home >> Jeep Truck >> 2009 >> Compass 2WD L4-2.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Sensors and Switches - Computers and Control Systems >> Coolant Temperature Sensor/Switch (For Computer) >> Diagrams >> Engine Coolant Temperature Sensor 2 (Powertrain) 2 Way

Engine Coolant Temperature Sensor 2 (Powertrain) 2 Way

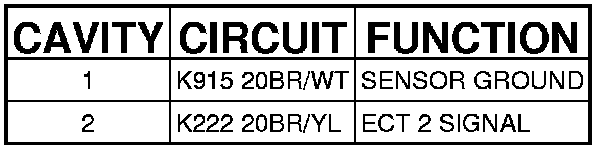

Connector (GAS) - (POWERTRAIN) 2 WAY

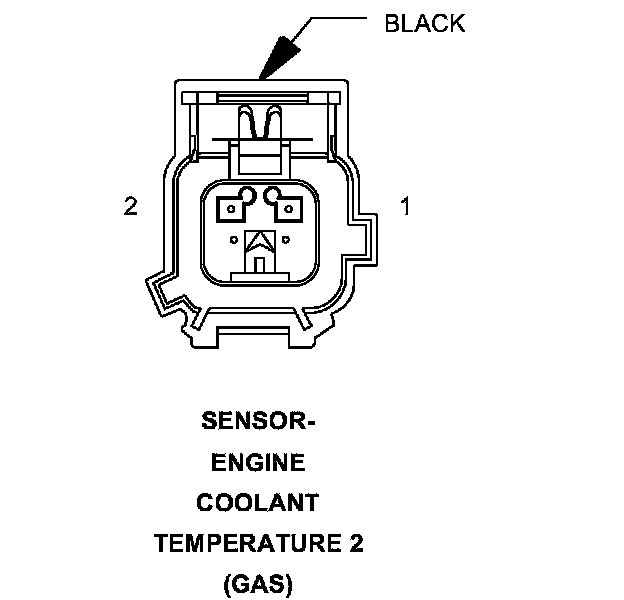

SENSOR-ENGINE COOLANT TEMPERATURE 2 (GAS) - (POWERTRAIN) 2 WAY
