Right Front Park/Turn Lamp (Engine Compartment) 3 Way
Right Front Park/Turn Lamp (Engine Compartment) 3 Way

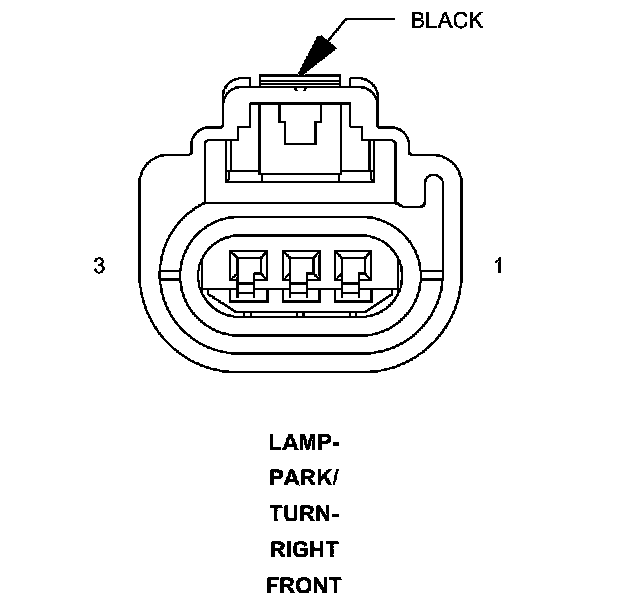

Connector - (ENGINE COMPARTMENT) 3 WAY

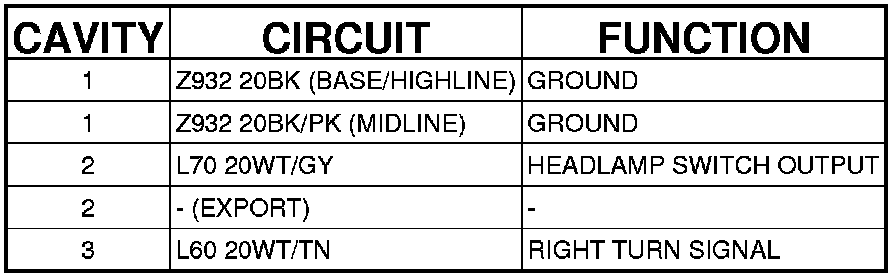

LAMP-PARK/TURN-RIGHT FRONT - (ENGINE COMPARTMENT) 3 WAY
