Left Front Park/Turn Lamp (Engine Compartment) 3 Way
Left Front Park/Turn Lamp (Engine Compartment) 3 Way

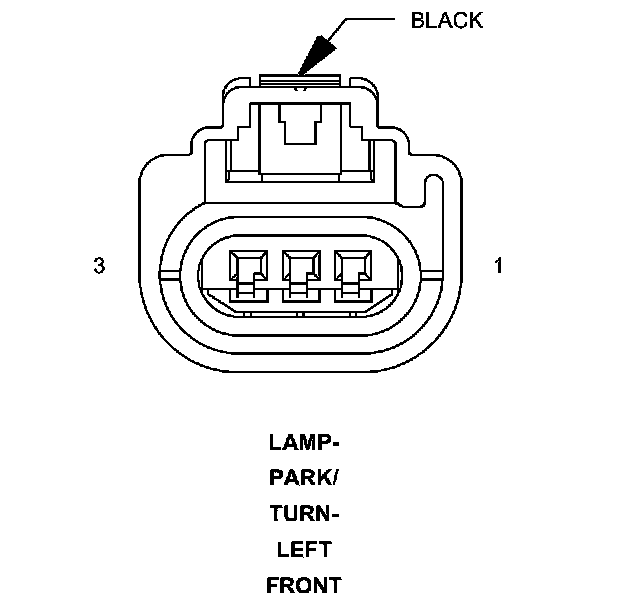

Connector - (ENGINE COMPARTMENT) 3 WAY

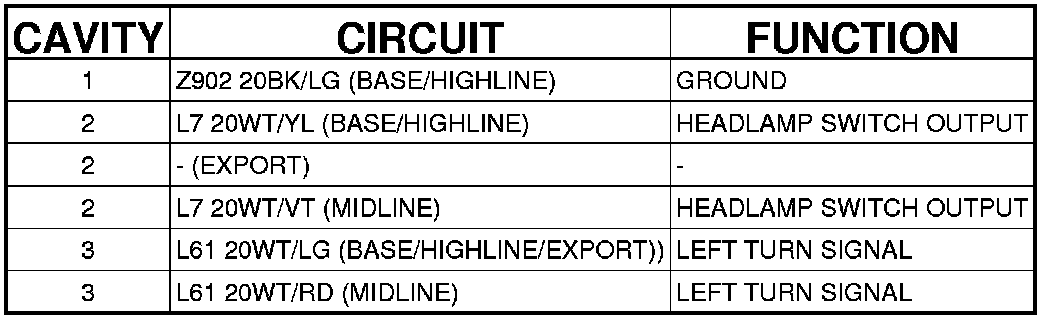

LAMP-PARK/TURN-LEFT FRONT - (ENGINE COMPARTMENT) 3 WAY
