Home >> Jeep Truck >> 2009 >> Compass 2WD L4-2.0L >> Repair and Diagnosis >> Lighting and Horns >> Sensors and Switches - Lighting and Horns >> Brake Light Switch >> Diagrams

Brake Light Switch: Diagrams

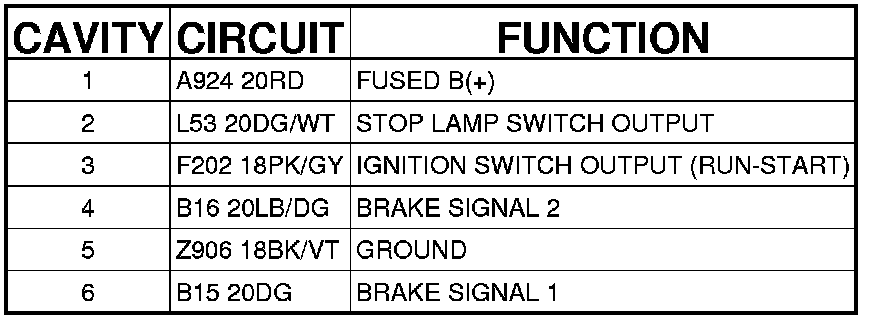

Connector - (BODY) 6 WAY

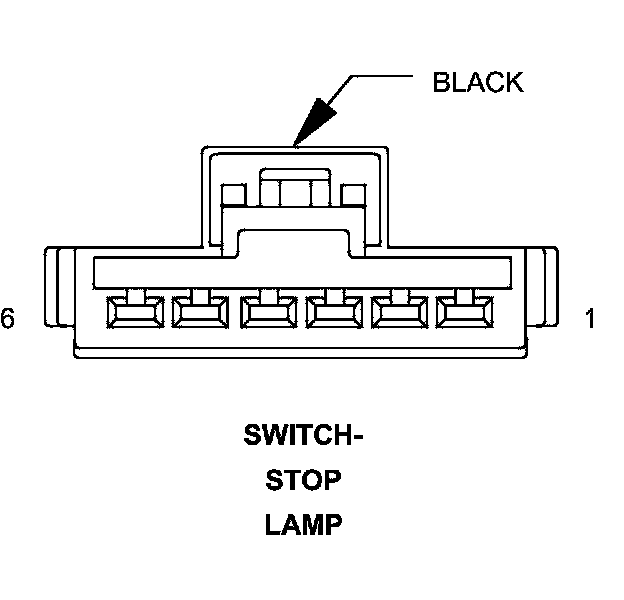

SWITCH-STOP LAMP - (BODY) 6 WAY
