Position Lamp Bulb - Removal






BULB - POSITION LAMP

NOTE: The following procedure applies only to vehicles manufactured for export markets. Vehicles manufactured for domestic markets do not have a position lamp bulb, socket or wiring provided in the headlamp unit.





1. Disconnect and isolate the battery negative cable.

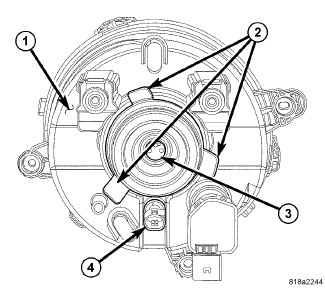

2. Disconnect the engine compartment wire harness connector from the position lamp bulb socket (4) on the back of the headlamp unit housing (1) near the bottom.
3. Firmly grasp the position lamp socket and rotate it counterclockwise about 30 degrees to unlock it.
4. Pull the socket and bulb straight out from the keyed opening in the housing.
5. Pull the base of the bulb straight out of the socket.
