Air Register: Description and Operation

DESCRIPTION

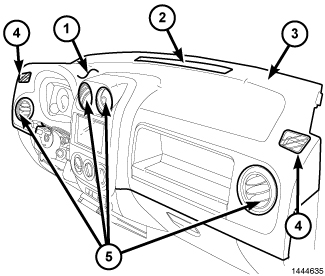

There is one defroster air outlet (2) located on the top of the instrument panel (1). The airflow from the defroster outlet is directed by fixed vanes in the outlet and cannot be adjusted. The defroster air outlet is not serviceable from the upper instrument panel cover (3).

There are two side window demister air outlets (4). One located on each end of the instrument panel. The airflow from the side window demister air outlets is directed by fixed vanes in the outlets and cannot be adjusted. The side window demister air outlets are not serviceable from the upper instrument panel cover.

There are four instrument panel air outlets (5). One air outlet is located near each outboard end of the instrument panel facing the rear of the vehicle and two air outlets are located at the top of the instrument panel center bezel. Each of the instrument panel air outlets contain a movable diffuser that can direct or shut off the flow of the conditioned air leaving the instrument panel outlets. All instrument panel air outlets can be serviced separately.
