Camshaft Position Solenoid 1/2 (Powertrain) 2 Way

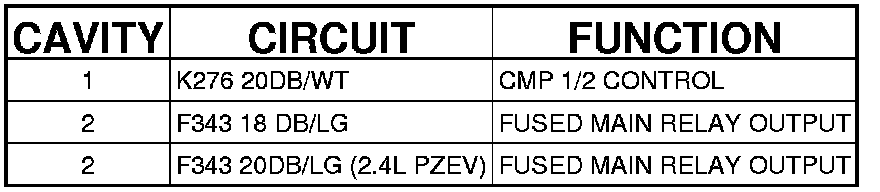

Connector (GAS) - (POWERTRAIN) 2 WAY

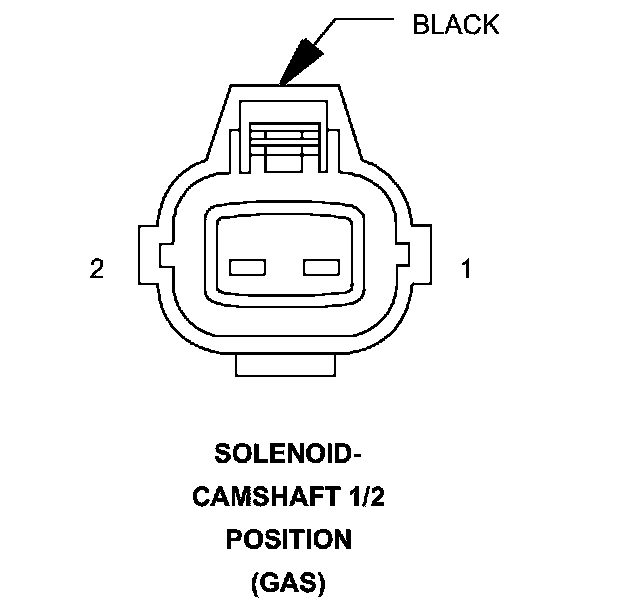

SOLENOID-CAMSHAFT 1/2 POSITION (GAS) - (POWERTRAIN) 2 WAY
