Voice Activation Module
>>
Hands Free Module C1 (Instrument Panel) 22 Way
Hands Free Module C1 (Instrument Panel) 22 Way

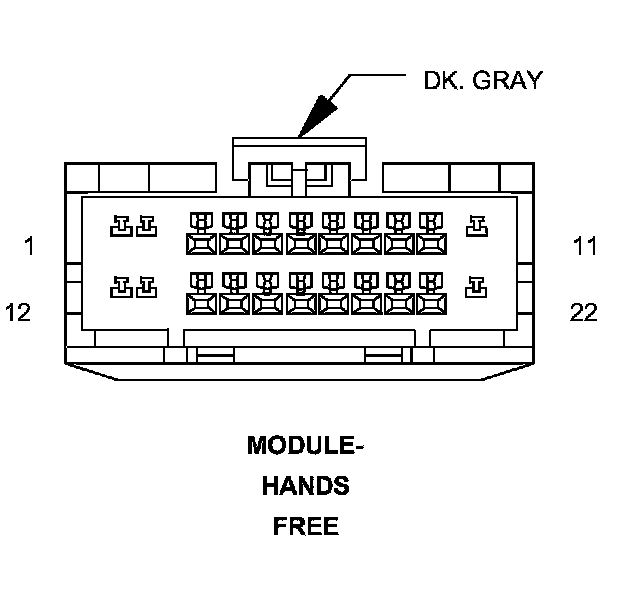

Connector C1 - (INSTRUMENT PANEL) 22 WAY

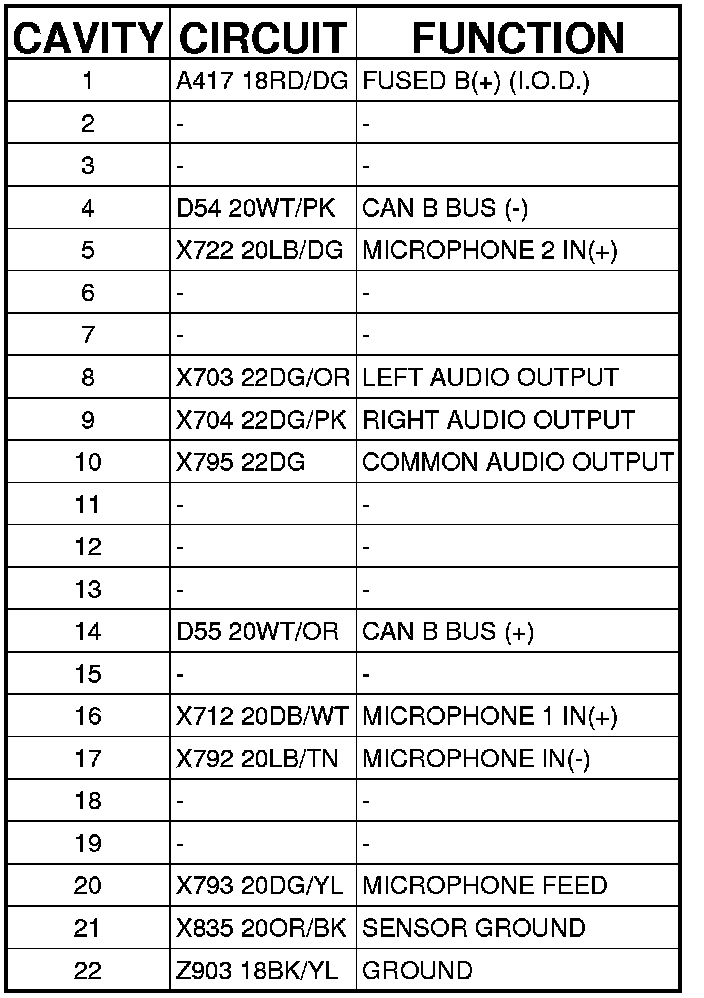

MODULE-HANDS FREE - (INSTRUMENT PANEL) 22 WAY
