Steering Mounted Controls Communication Module
>>
Steering Control Module C4 (Instrument Panel) 4 Way
Steering Control Module C4 (Instrument Panel) 4 Way

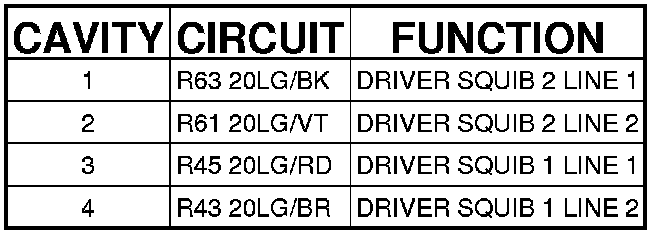

Connector C4 - (INSTRUMENT PANEL) 4 WAY

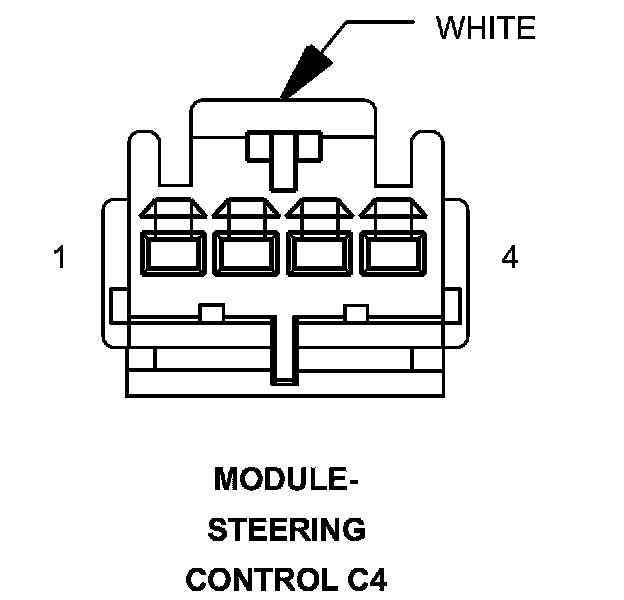

MODULE-STEERING CONTROL - (INSTRUMENT PANEL) 4 WAY
