Liftgate Speaker (Except Base) (Liftgate) 4 Way
Liftgate Speaker (Except Base) (Liftgate) 4 Way

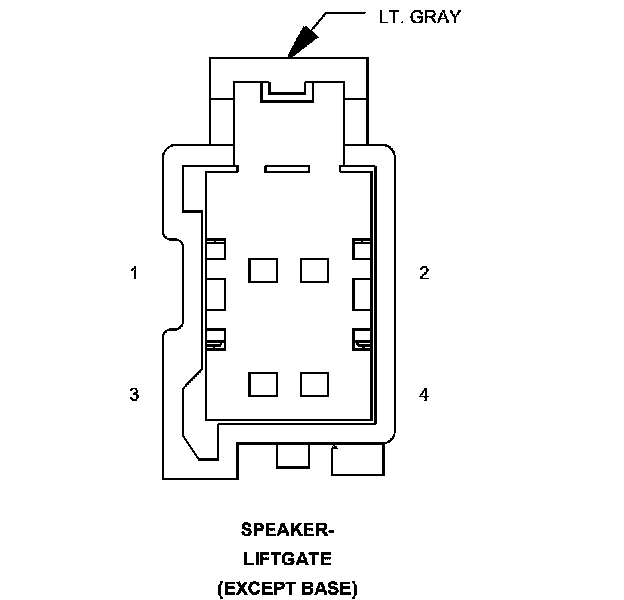

Connector (EXCEPT BASE) - (LIFTGATE) 4 WAY

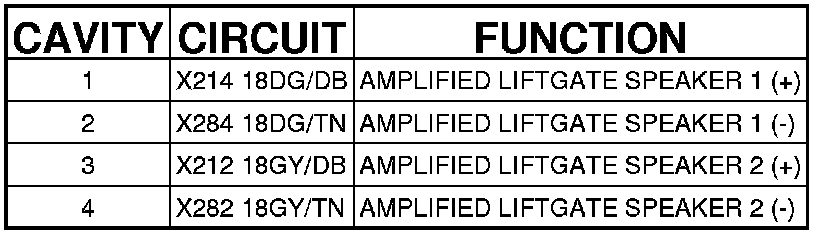

SPEAKER-LIFTGATE (EXCEPT BASE) - (LIFTGATE) 4 WAY
