Radiator Cooling Fan Module C1 (Engine Compartment) 2 Way

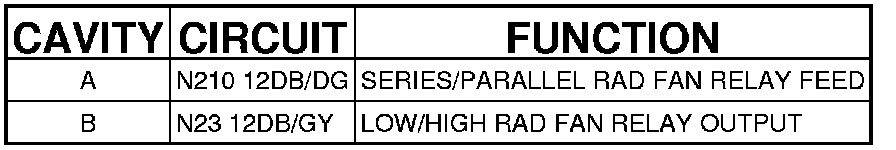

Connector C1 - (ENGINE COMPARTMENT) 2 WAY

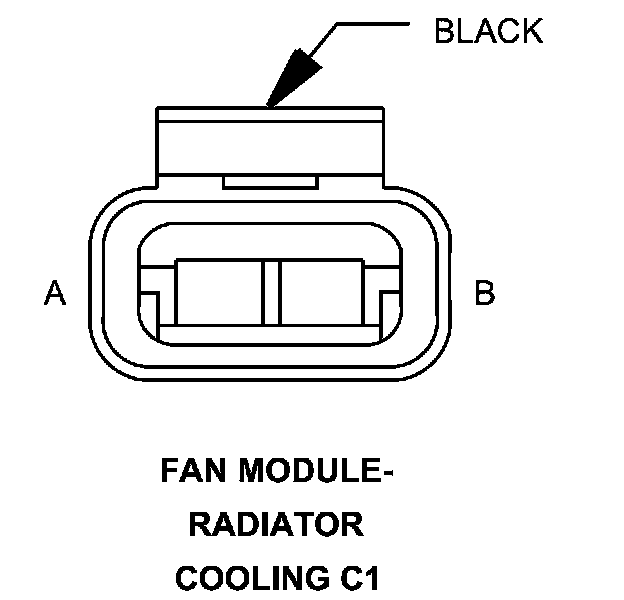

FAN MODULE-RADIATOR COOLING - (ENGINE COMPARTMENT) 2 WAY
