Home >> Jeep Truck >> 2009 >> Compass 2WD L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Trunk / Liftgate Lock Actuator >> Liftgate Door Latch C2 (Liftgate) 2 Way

Liftgate Door Latch C2 (Liftgate) 2 Way

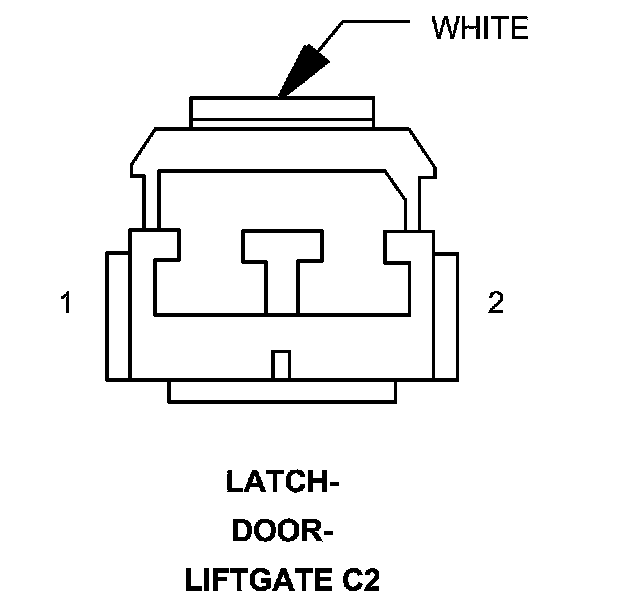

Connector C2 - (LIFTGATE) 2 WAY

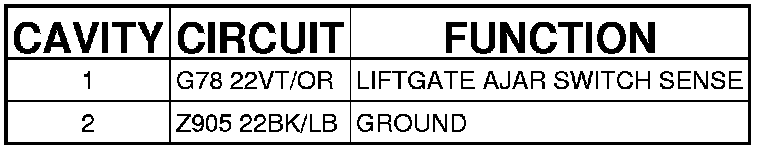

LATCH-DOOR-LIFTGATE - (LIFTGATE) 2 WAY
