Totally Integrated Power Module C7 (Engine Compartment) 22 Way

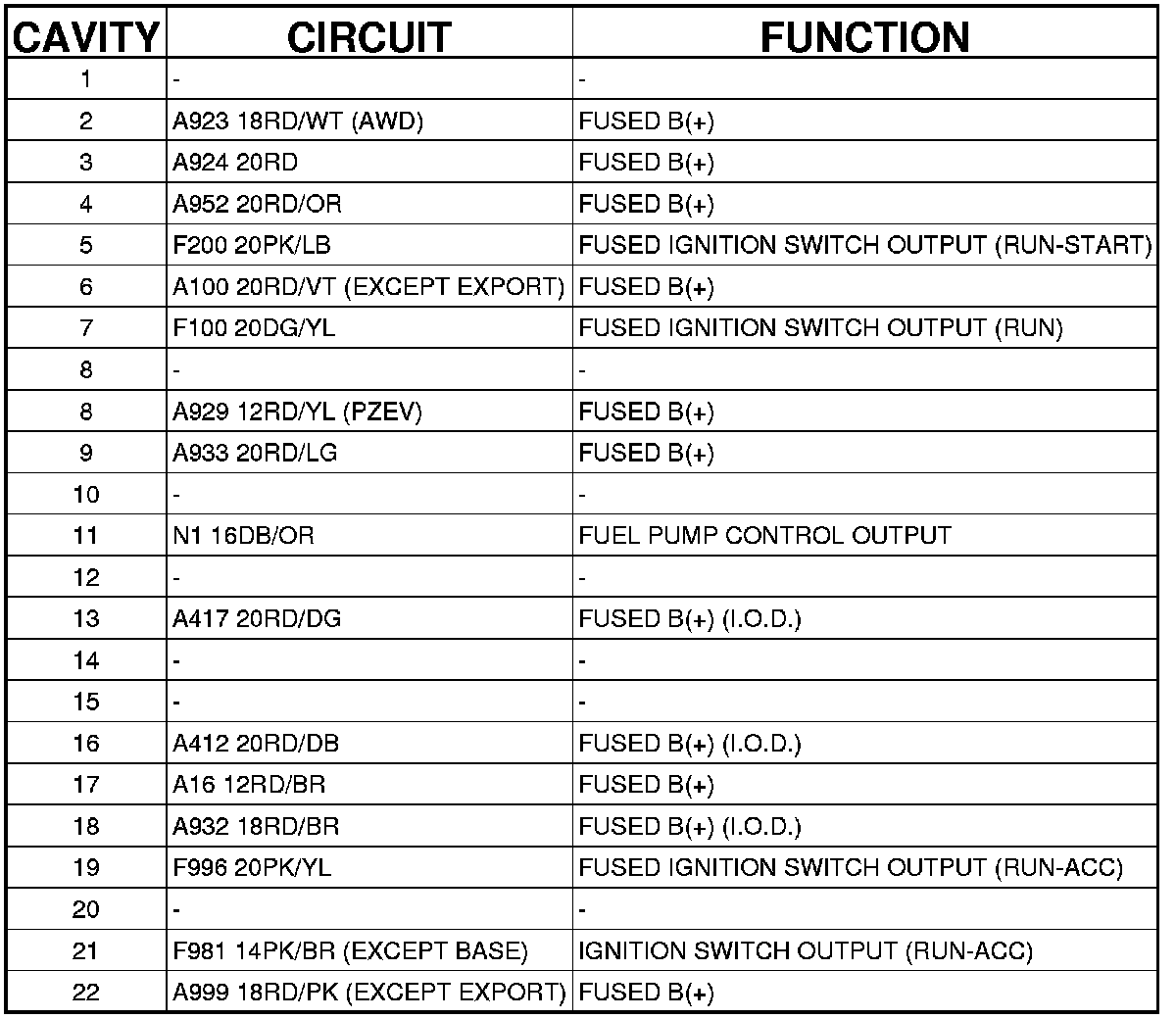

Connector C7 - (ENGINE COMPARTMENT) 22 WAY

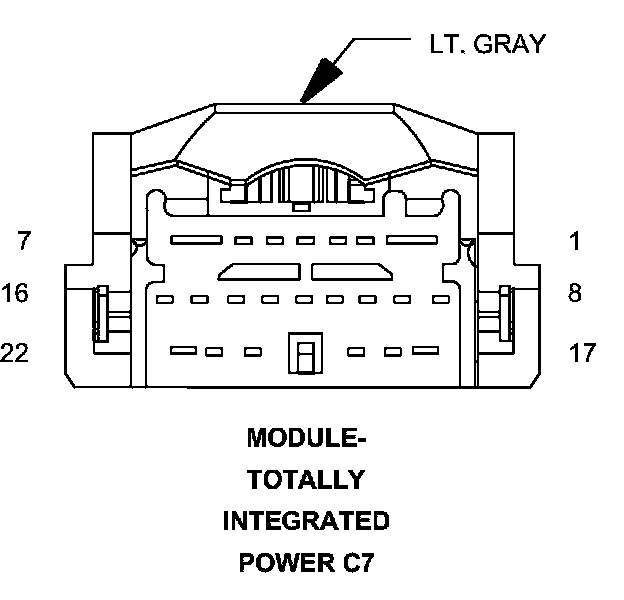

MODULE-TOTALLY INTEGRATED POWER - (ENGINE COMPARTMENT) 22 WAY
