Driver Outside Rearview Mirror (Left/Right Front Door) 12 Way

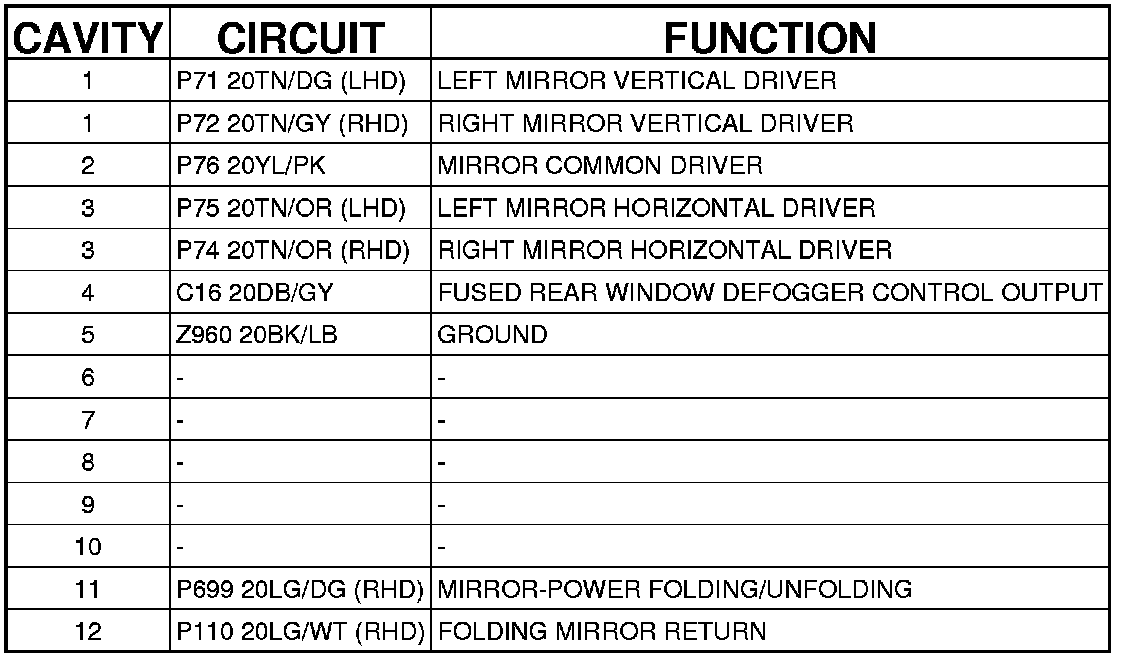

Connector - (LEFT/RIGHT FRONT DOOR) 12 WAY

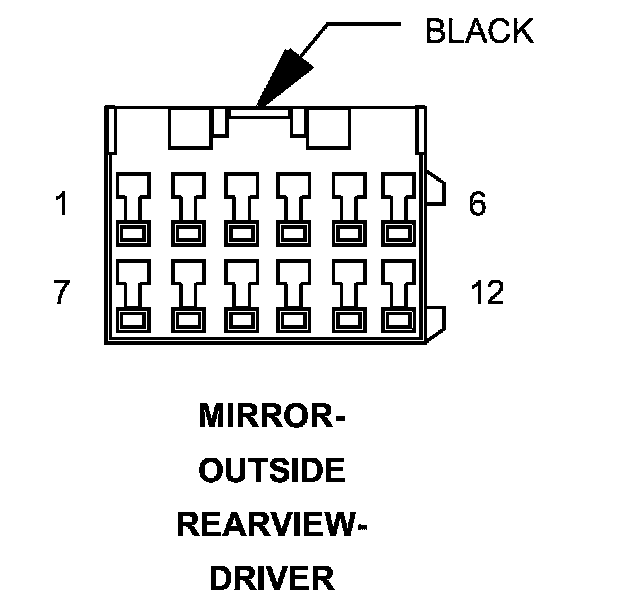

MIRROR-OUTSIDE REARVIEW-DRIVER - (LEFT/RIGHT FRONT DOOR) 12 WAY
