Main Relay (Computer/Fuel System)
Main Relay (Computer/Fuel System)

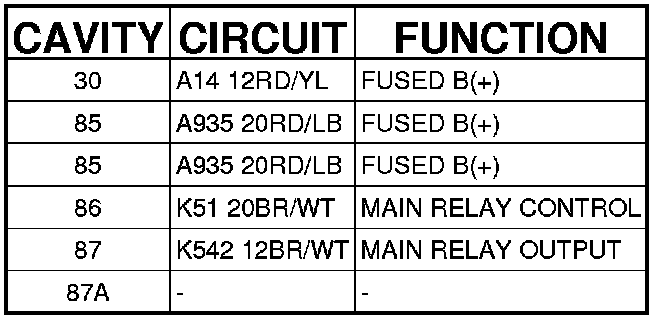

Connector - (IN F/RB)

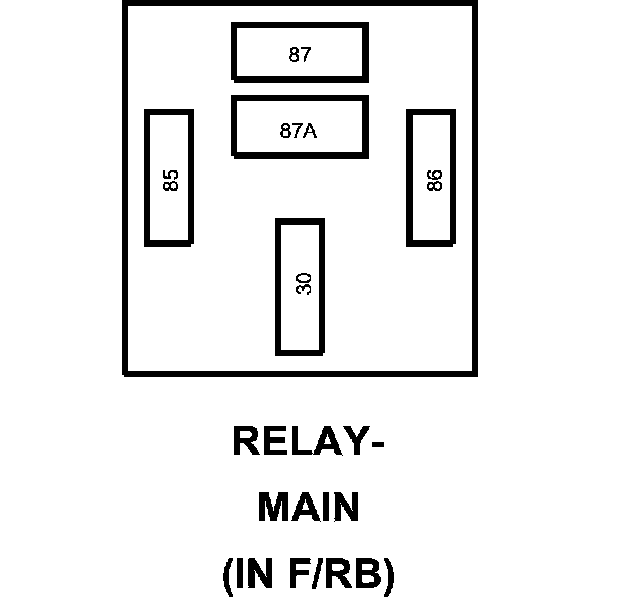

RELAY-MAIN - (IN F/RB)
