Home >> Jeep Truck >> 2009 >> Compass 2WD L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> Powertrain Control Module C2 (Engine Compartment) 96 Way

Powertrain Control Module C2 (Engine Compartment) 96 Way

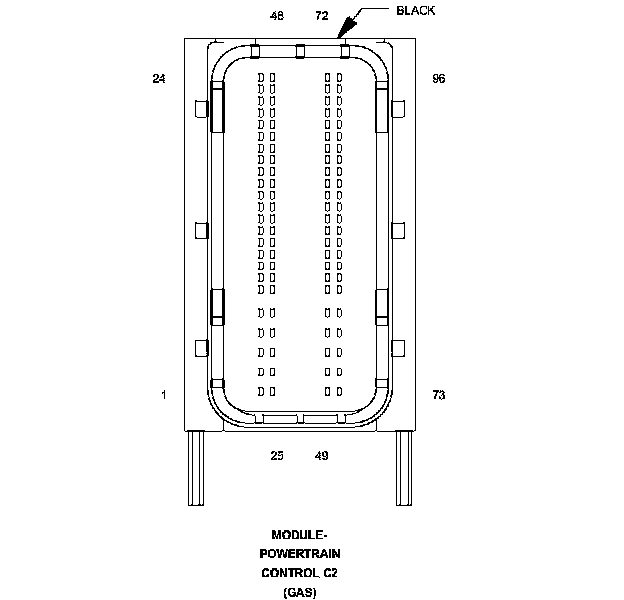

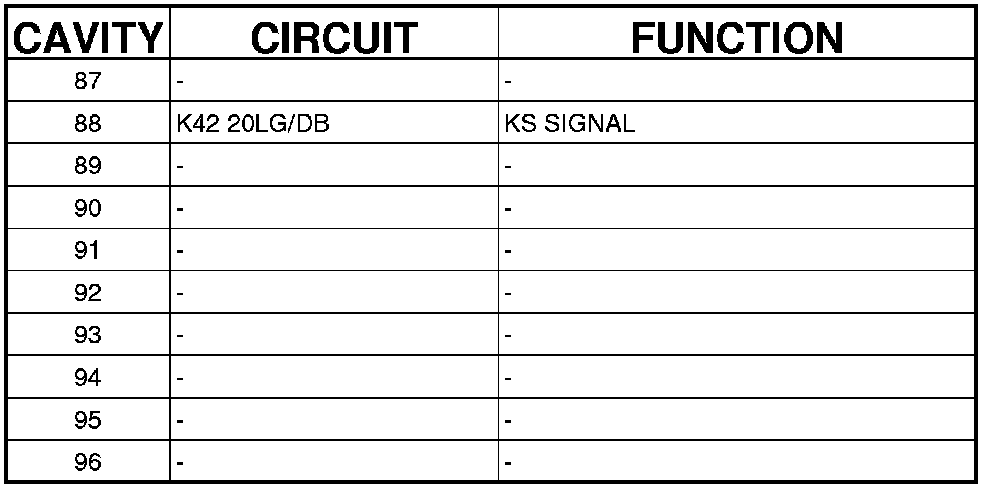

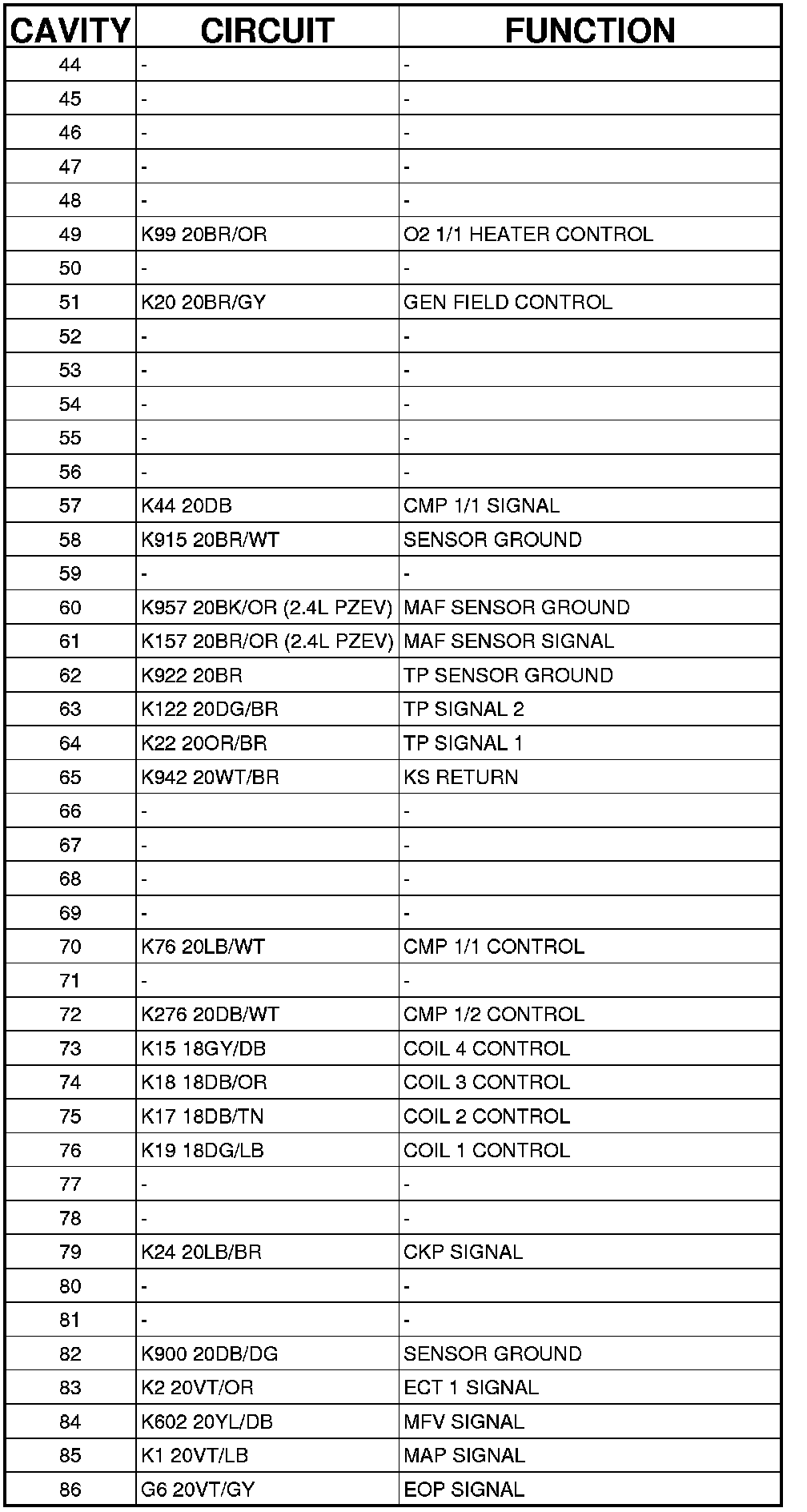

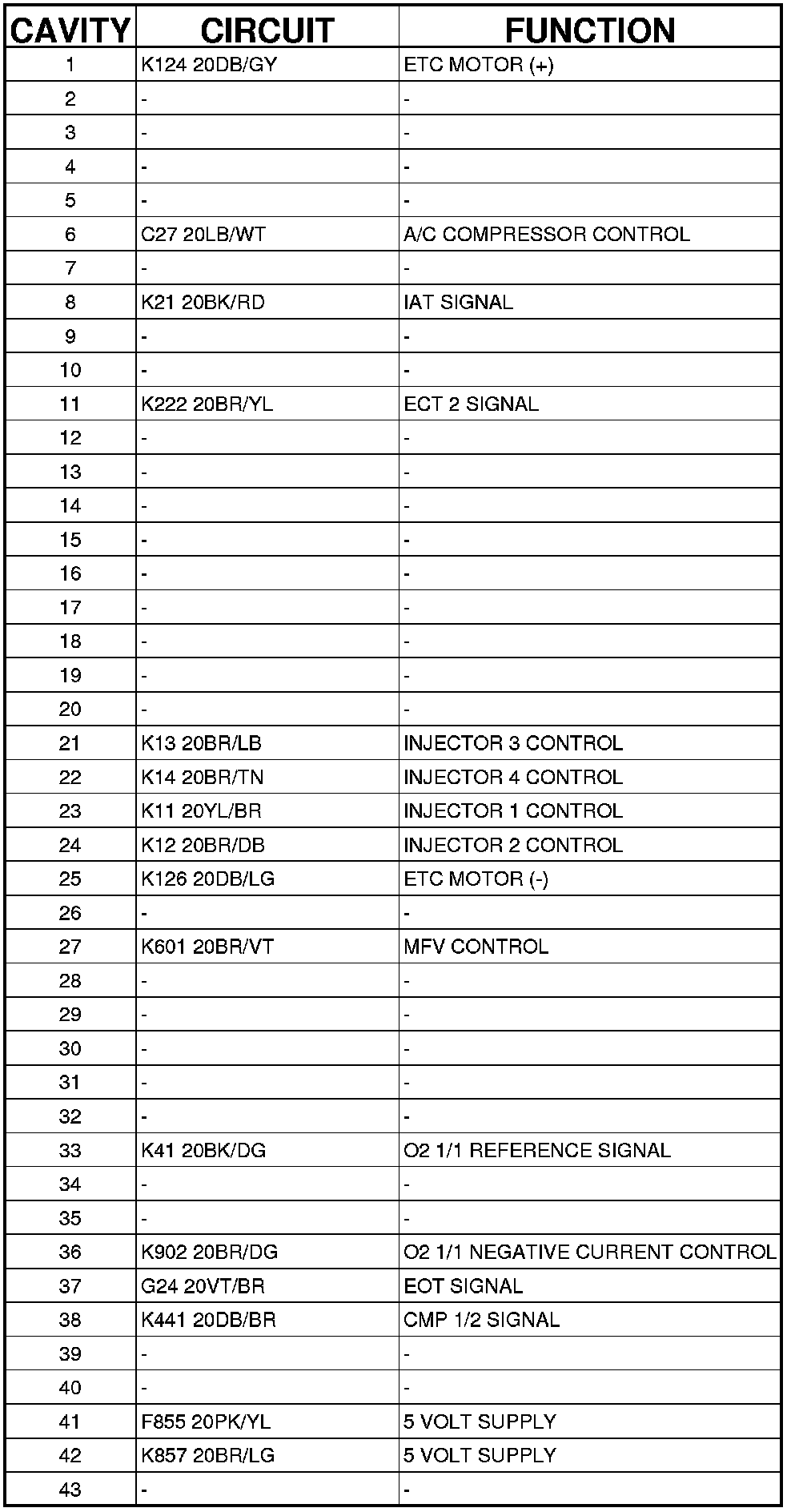

Connector C2 (GAS) - (ENGINE COMPARTMENT) 96 WAY




MODULE-POWERTRAIN CONTROL (GAS) - (ENGINE COMPARTMENT) 96 WAY
