Home >> Jeep Truck >> 2009 >> Compass 2WD L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> Powertrain Control Module C1 (Engine Compartment) 58 Way

Powertrain Control Module C1 (Engine Compartment) 58 Way

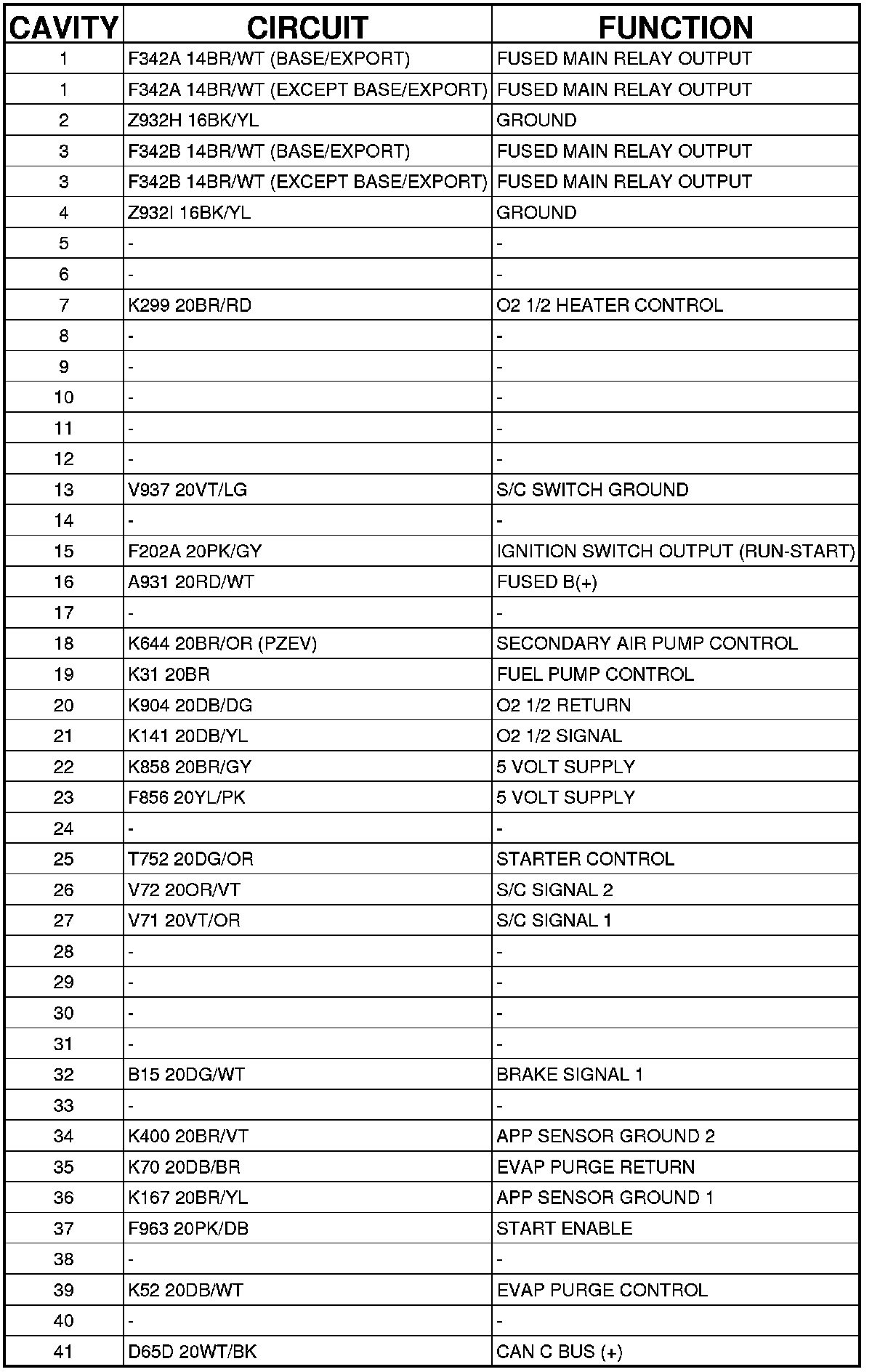

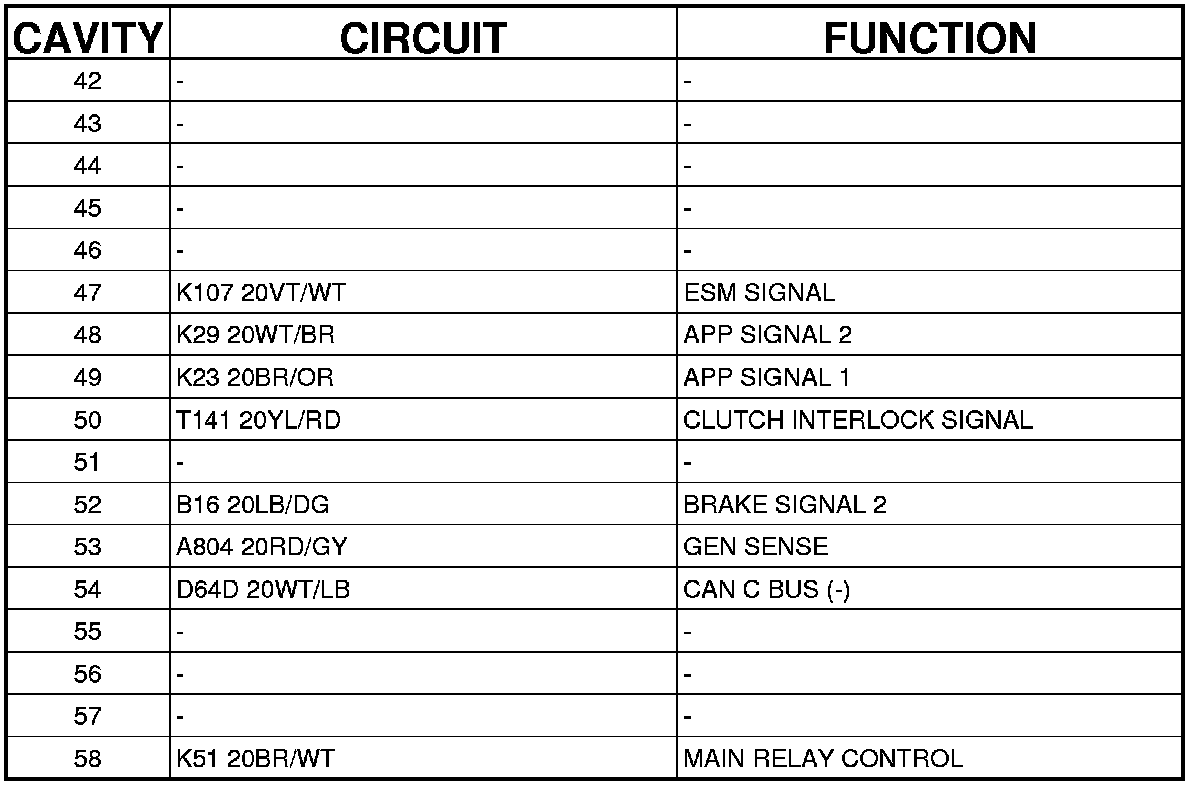

Connector C1 (GAS) - (ENGINE COMPARTMENT) 58 WAY

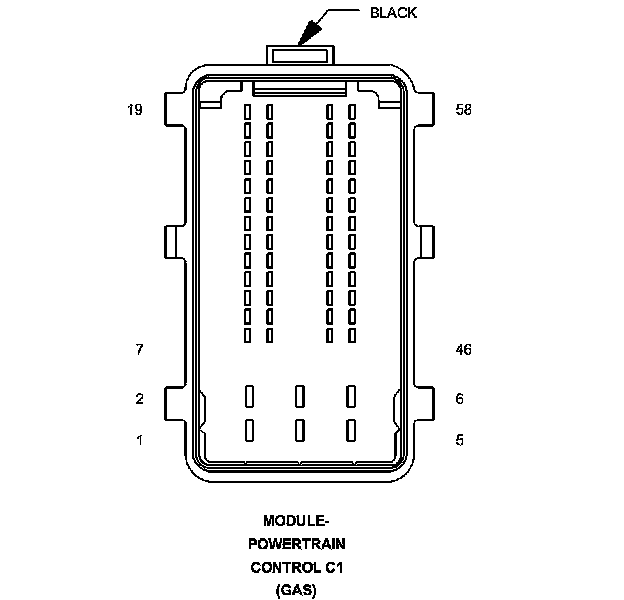

MODULE-POWERTRAIN CONTROL (GAS) - (ENGINE COMPARTMENT) 58 WAY
