Electronic Overhead Module C2 (Headliner) 4 Way

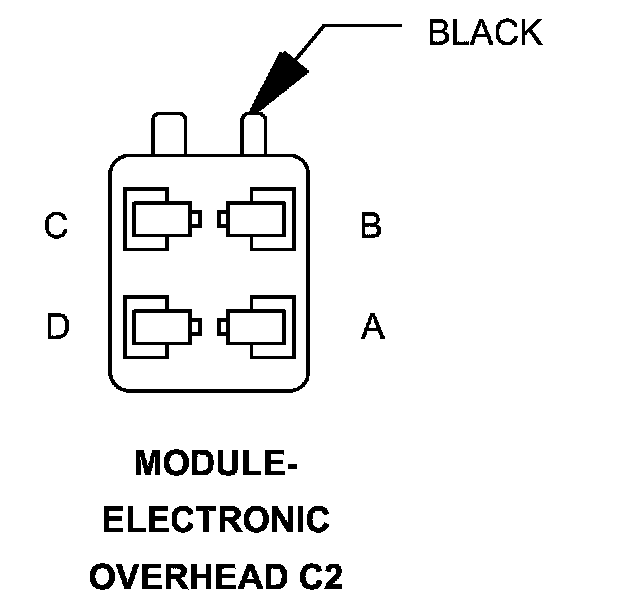

Connector C2 - (HEADLINER) 4 WAY

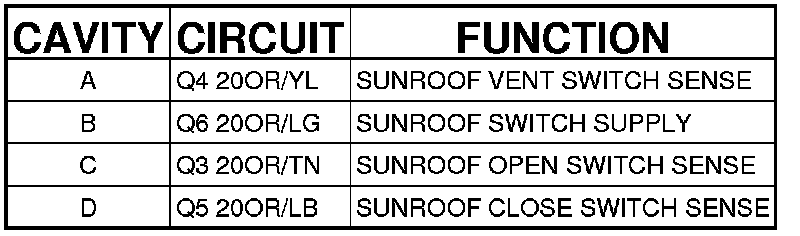

MODULE-ELECTRONIC OVERHEAD - (HEADLINER) 4 WAY
