Jeep Truck
>>
2009
>>
Compass 2WD L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Assembly, HVAC
>>
A/C Heater Control C1 (Instrument Panel) 12 Way
A/C Heater Control C1 (Instrument Panel) 12 Way

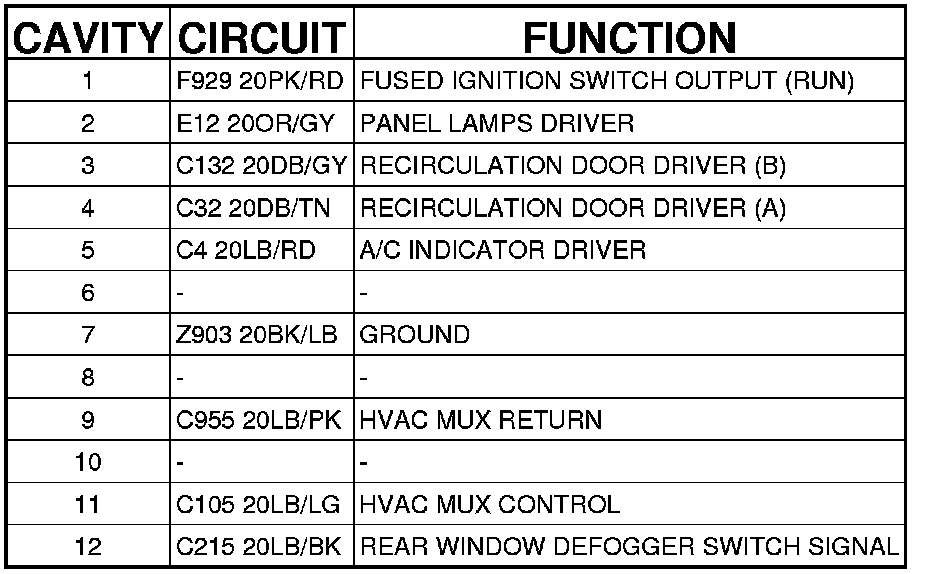

Connector C1 - (INSTRUMENT PANEL) 12 WAY

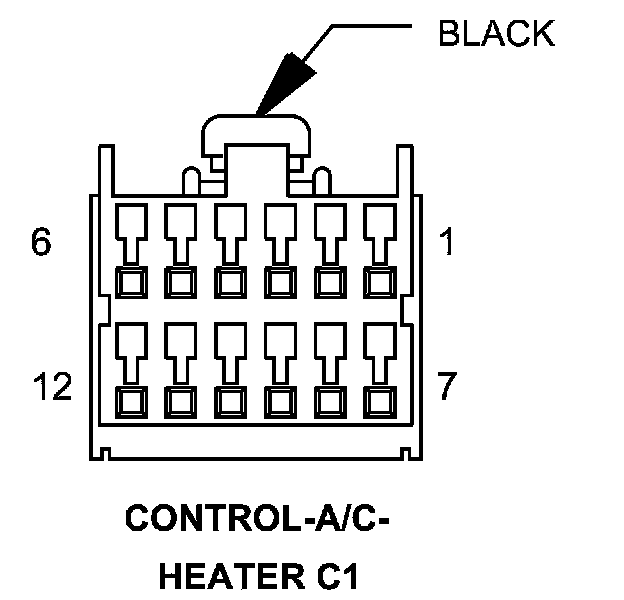

CONTROL-A/C-HEATER - (INSTRUMENT PANEL) 12 WAY
