C305 (SAB) (Left Seat Side) 14 Way
C305 (SAB) (Left Seat Side) 14 Way

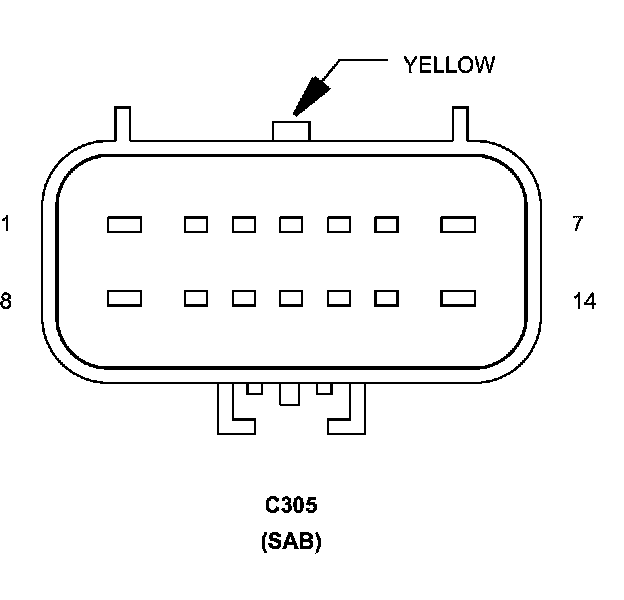

Connector (SAB) - (LEFT SEAT SIDE) 14 WAY

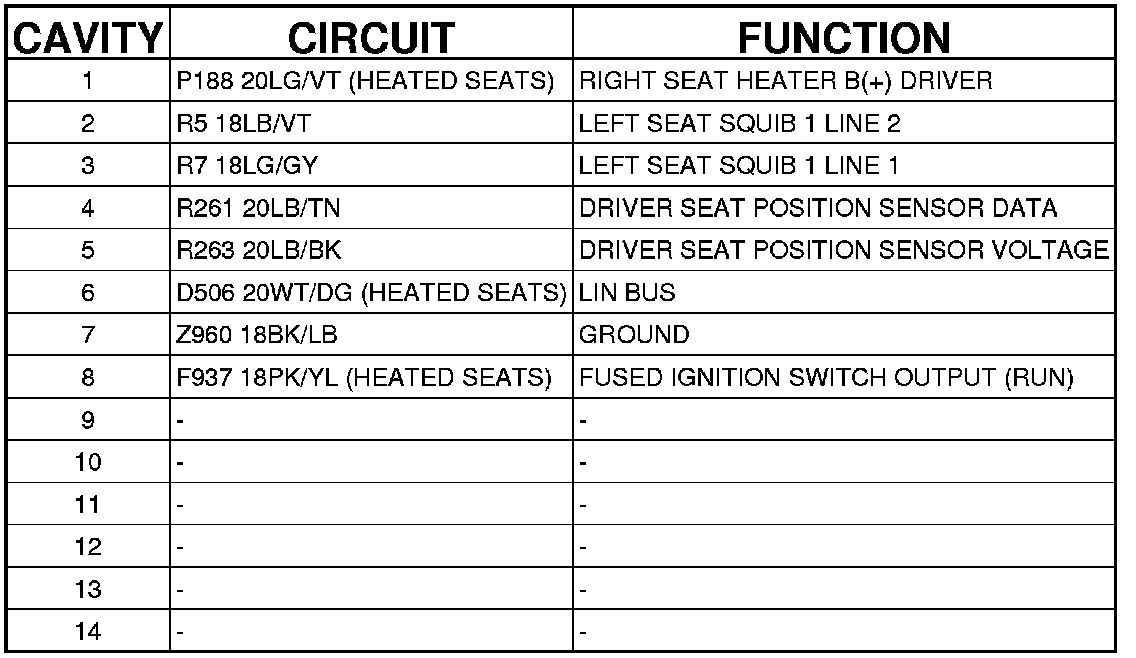

C305 (SAB) - (LEFT SEAT SIDE) 14 WAY
