Home >> Jeep Truck >> 2009 >> Compass 2WD L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> C300 - C399 >> C304 (SAB) (Body Side) 14 Way

C304 (SAB) (Body Side) 14 Way

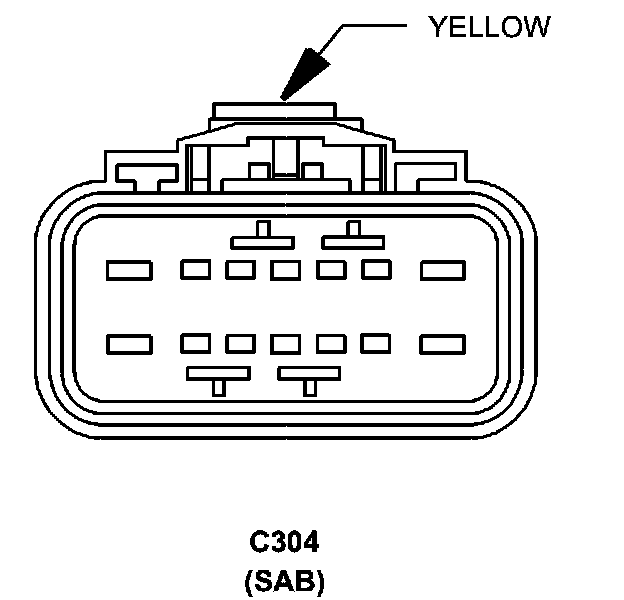

Connector (SAB) - (BODY SIDE) 14 WAY

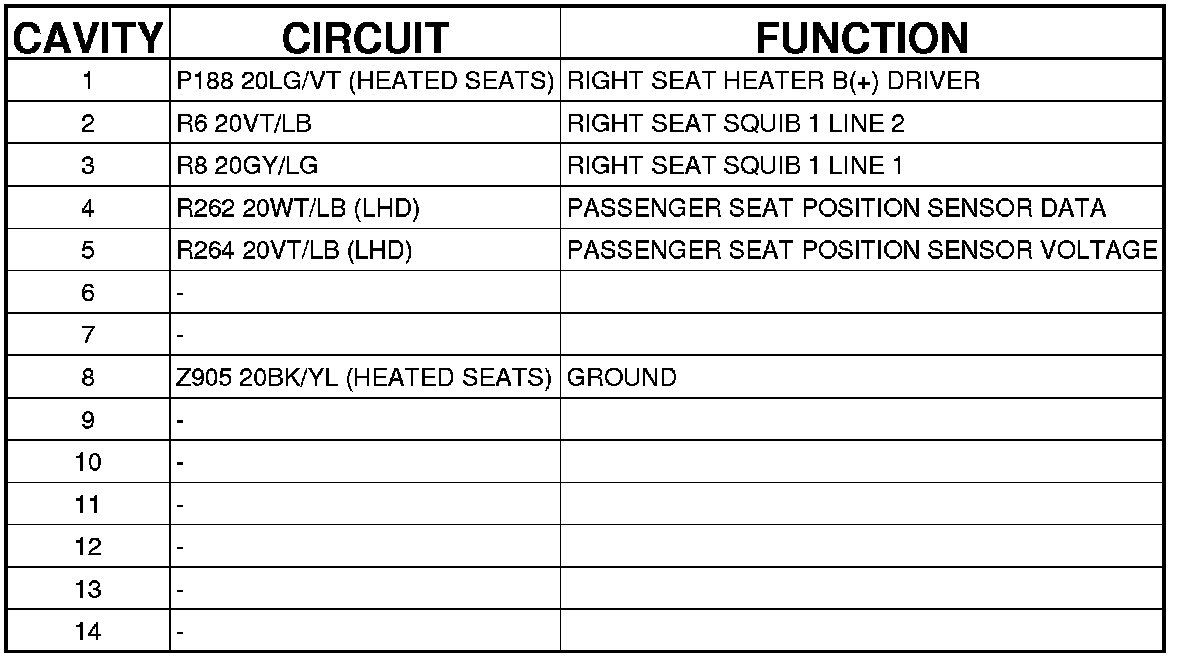

C304 (SAB) - (BODY SIDE) 14 WAY
