Home >> Jeep Truck >> 2009 >> Compass 2WD L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> C200 - C299 >> C202 (Instrument Panel Side) 20 Way

C202 (Instrument Panel Side) 20 Way

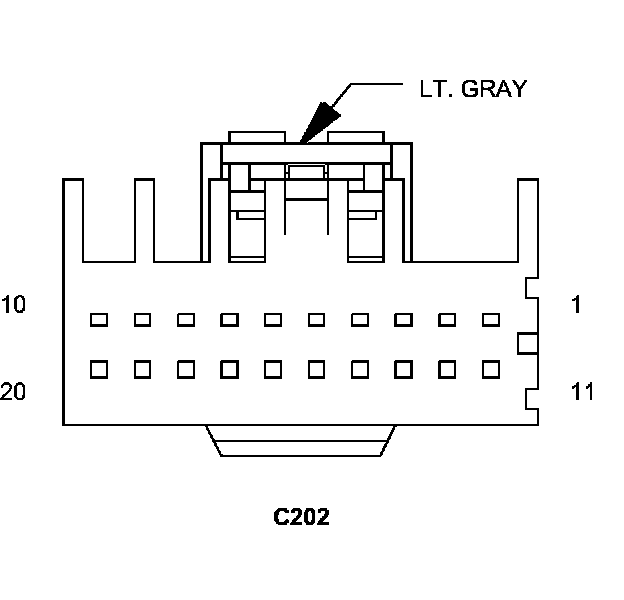

Connector - (INSTRUMENT PANEL SIDE) 20 WAY

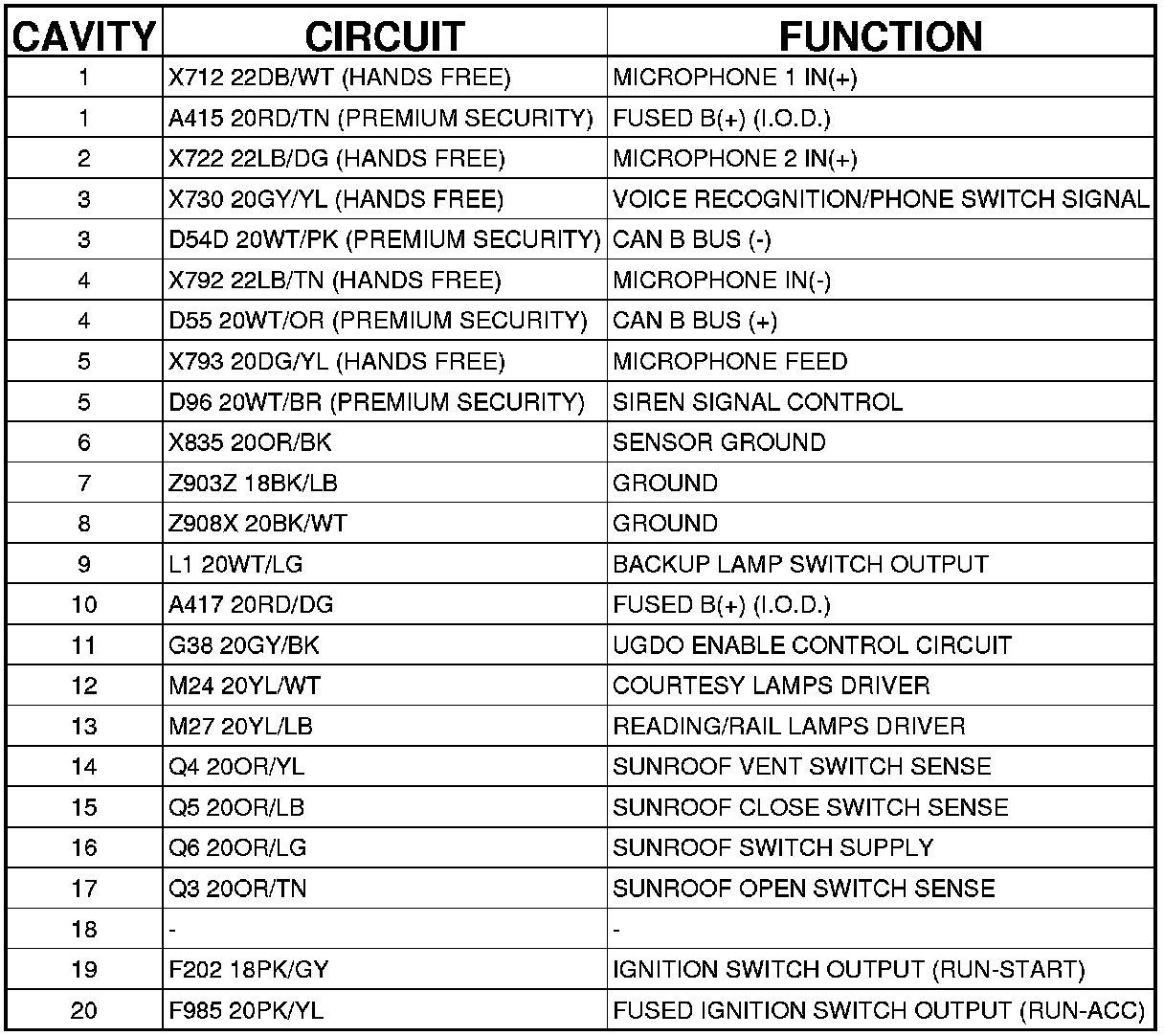

C202 - (INSTRUMENT PANEL SIDE) 20 WAY
