Home >> Jeep Truck >> 2009 >> Compass 2WD L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> C100 - C199 >> C105 (Engine Compartment Side) 4 Way

C105 (Engine Compartment Side) 4 Way

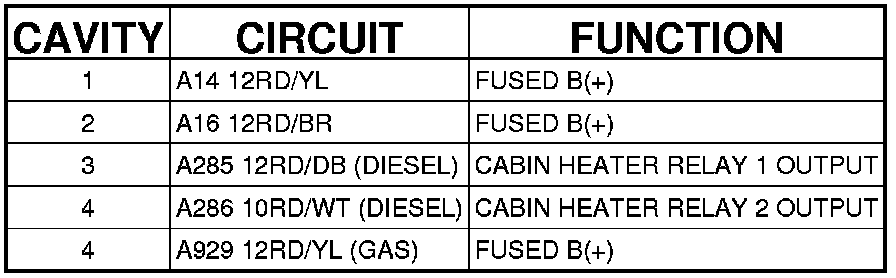

Connector - (ENGINE COMPARTMENT SIDE) 4 WAY

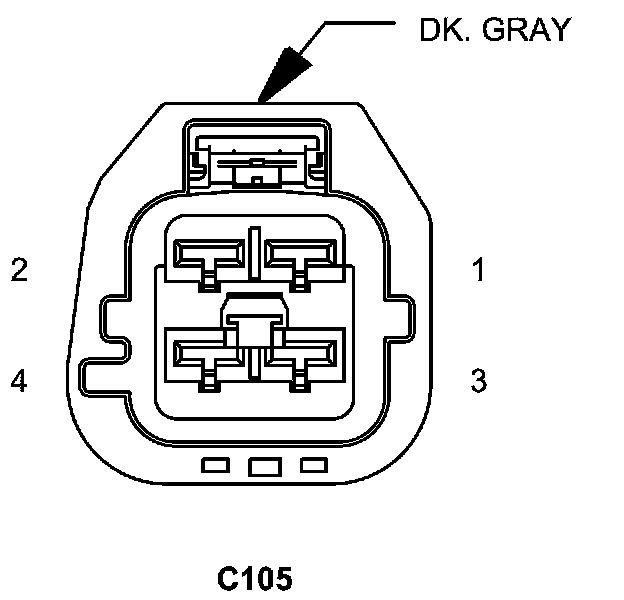

C105 - (ENGINE COMPARTMENT SIDE) 4 WAY
