Home >> Jeep Truck >> 2009 >> Compass 2WD L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> C100 - C199 >> C104 (Body Side) 16 Way

C104 (Body Side) 16 Way

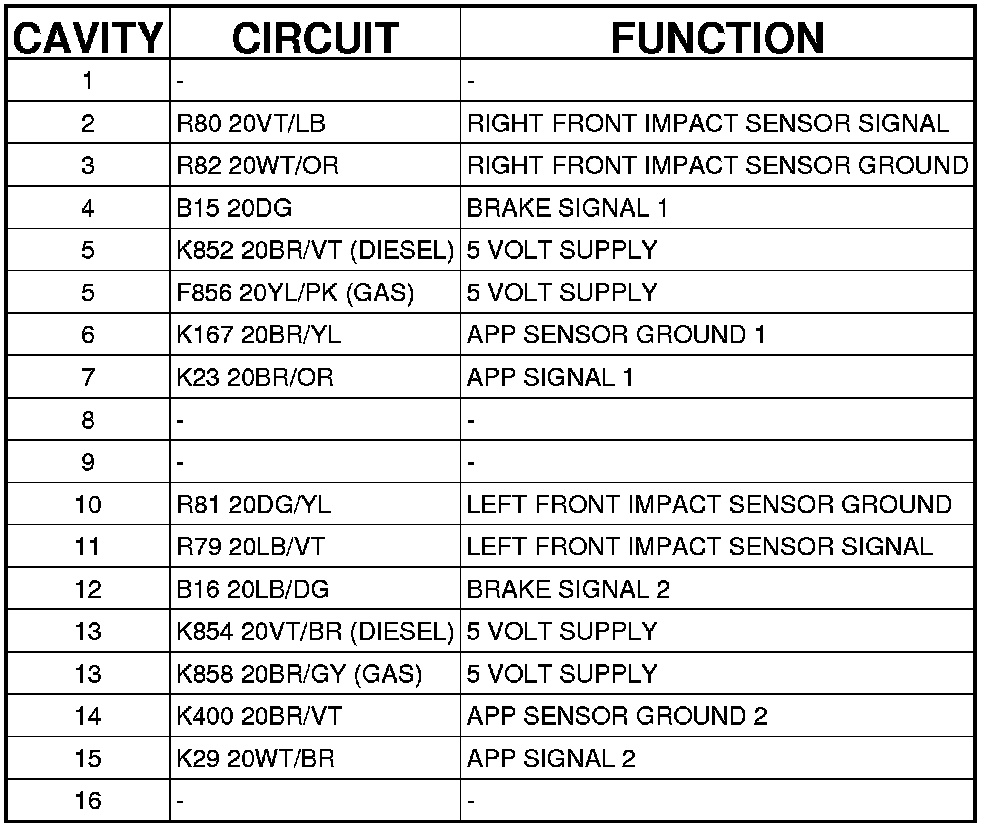

Connector - (BODY SIDE) 16 WAY




C104 - (BODY SIDE) 16 WAY
