C100 (Engine Compartment Side) 14 Way
C100 (Engine Compartment Side) 14 Way

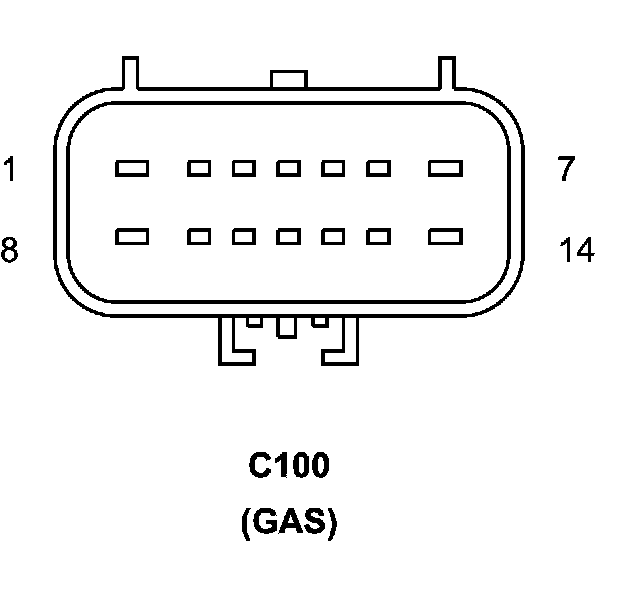

Connector (GAS) - (ENGINE COMPARTMENT SIDE) 14 WAY

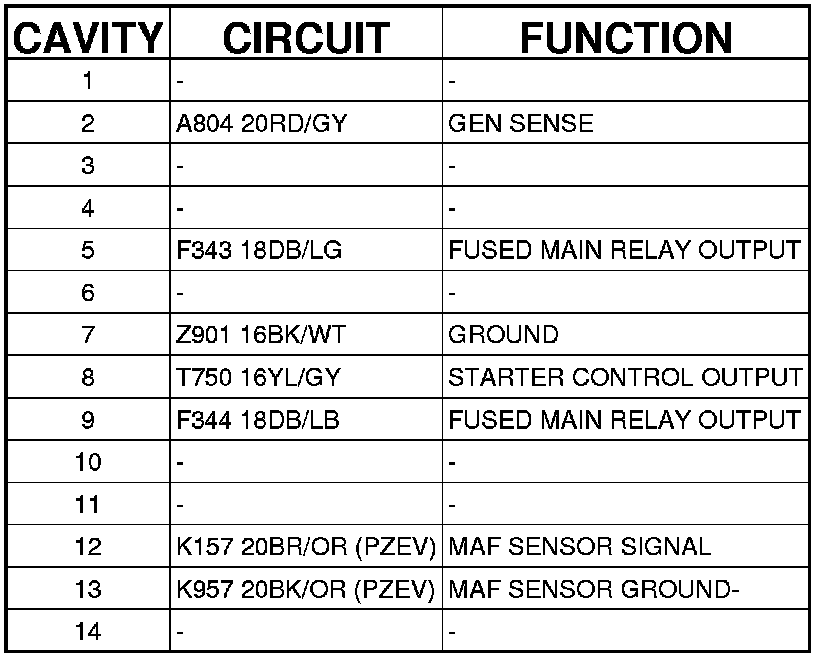

C100 (GAS) - (ENGINE COMPARTMENT SIDE) 14 WAY
