Compass 2WD L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Backup Lamp
>>
System Diagram
>>
Right Backup Lamp (Body) 2 Way
Right Backup Lamp (Body) 2 Way

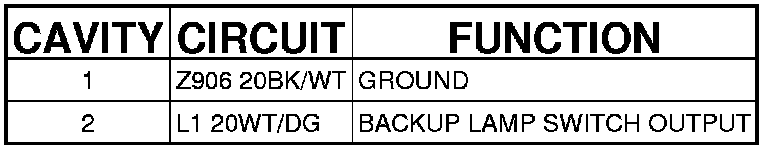

Connector - (BODY) 2 WAY

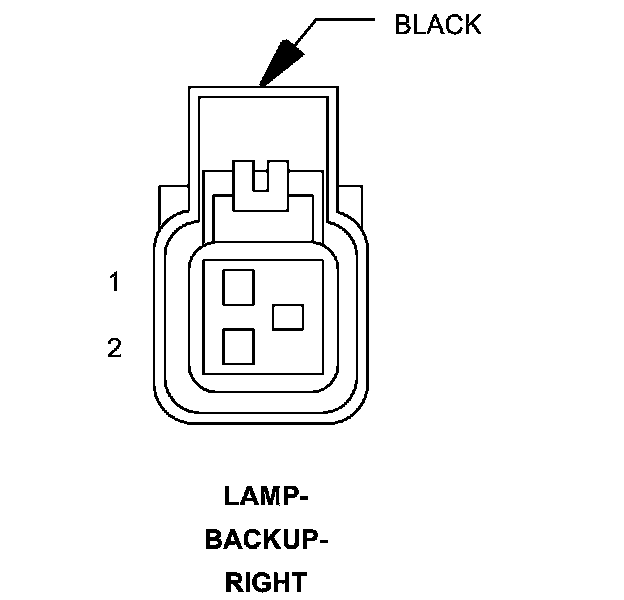

LAMP-BACKUP-RIGHT - (BODY) 2 WAY
