Auxiliary Input / Output Jack, Entertainment System
Auxiliary Input / Output Jack, Entertainment System

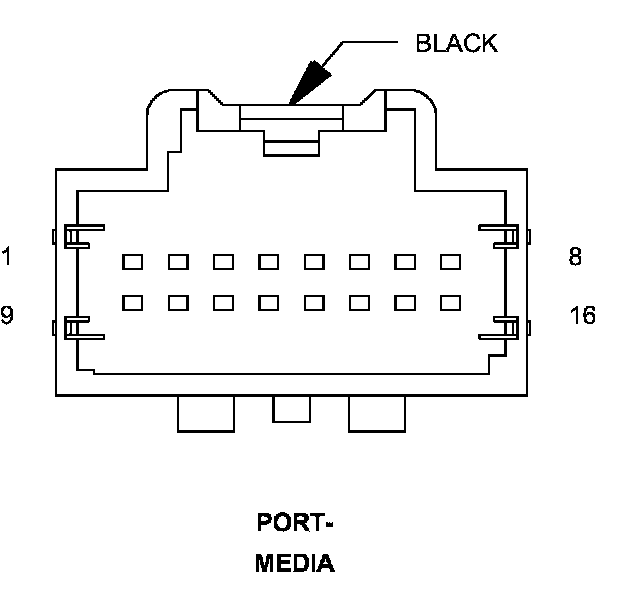

Connector - (INSTRUMENT PANEL) 16 WAY

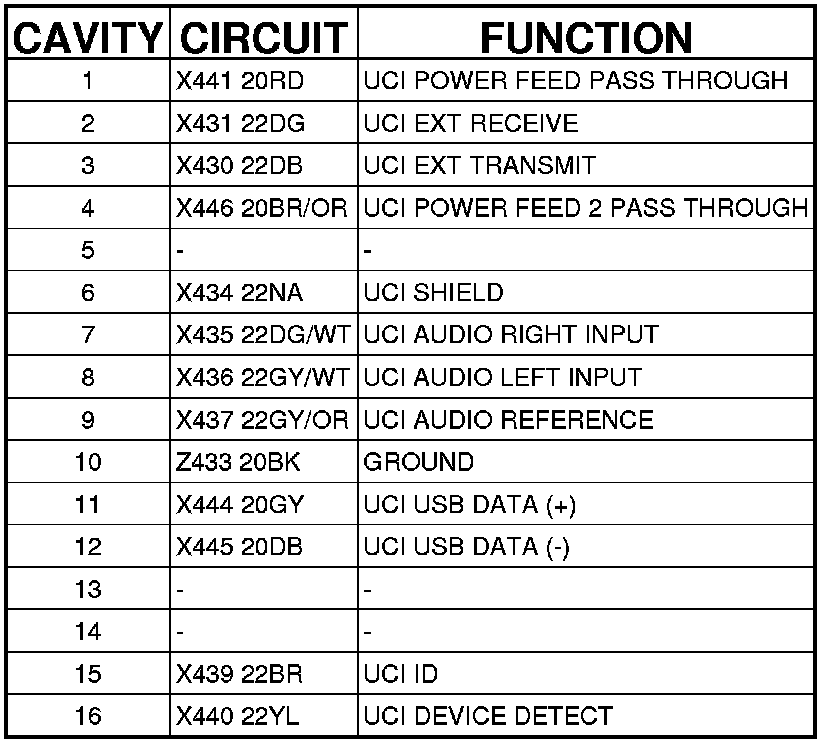

PORT-MEDIA - (INSTRUMENT PANEL) 16 WAY
