Home >> Jeep Truck >> 2009 >> Compass 2WD L4-2.0L >> Repair and Diagnosis >> Body and Frame >> Sound Proofing / Insulation >> Locations

Sound Proofing / Insulation: Locations

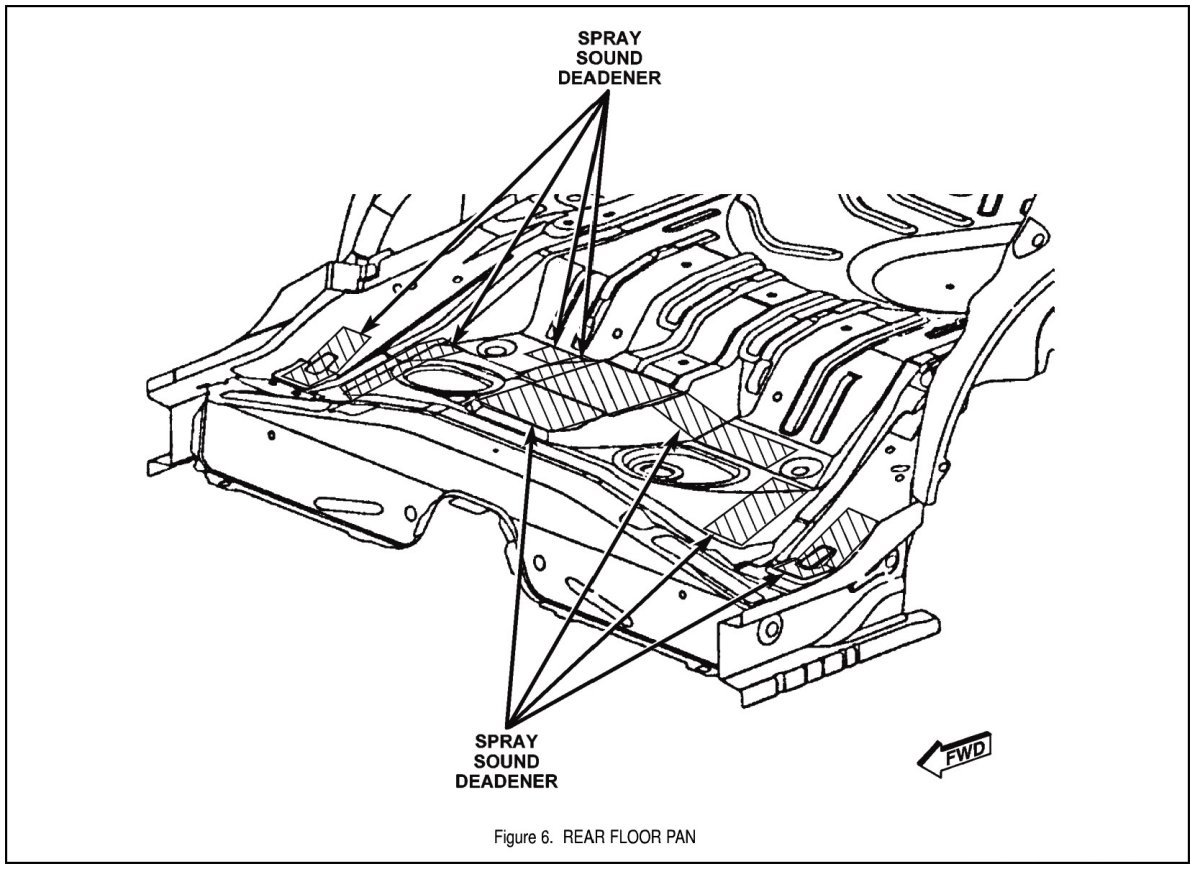

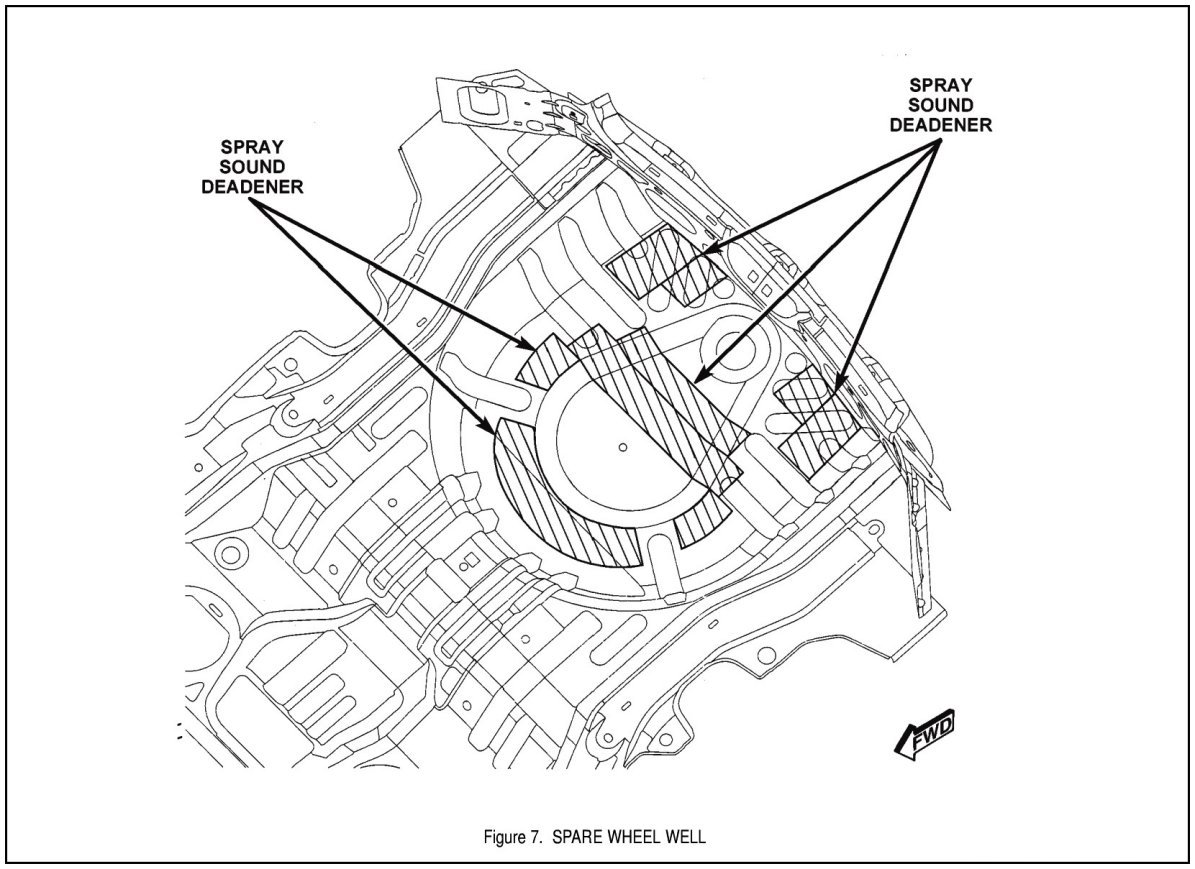

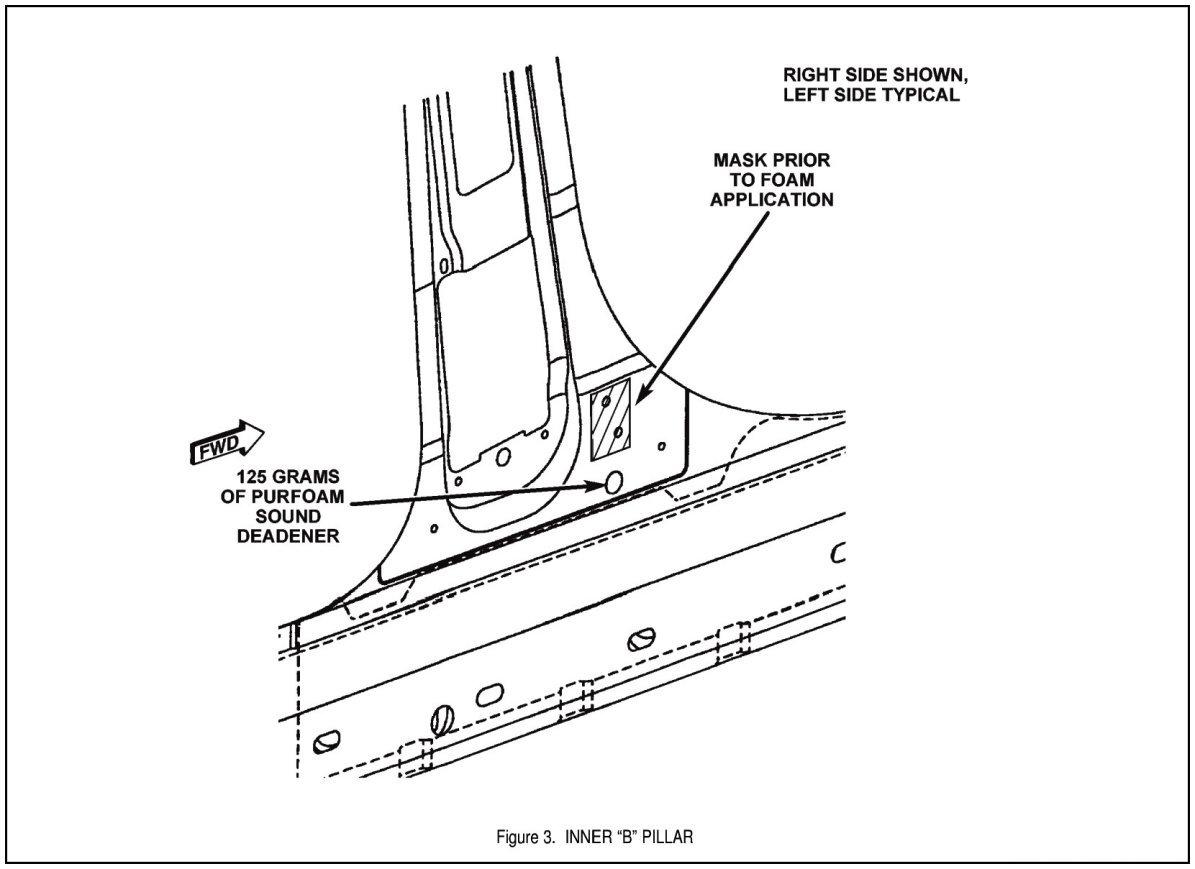

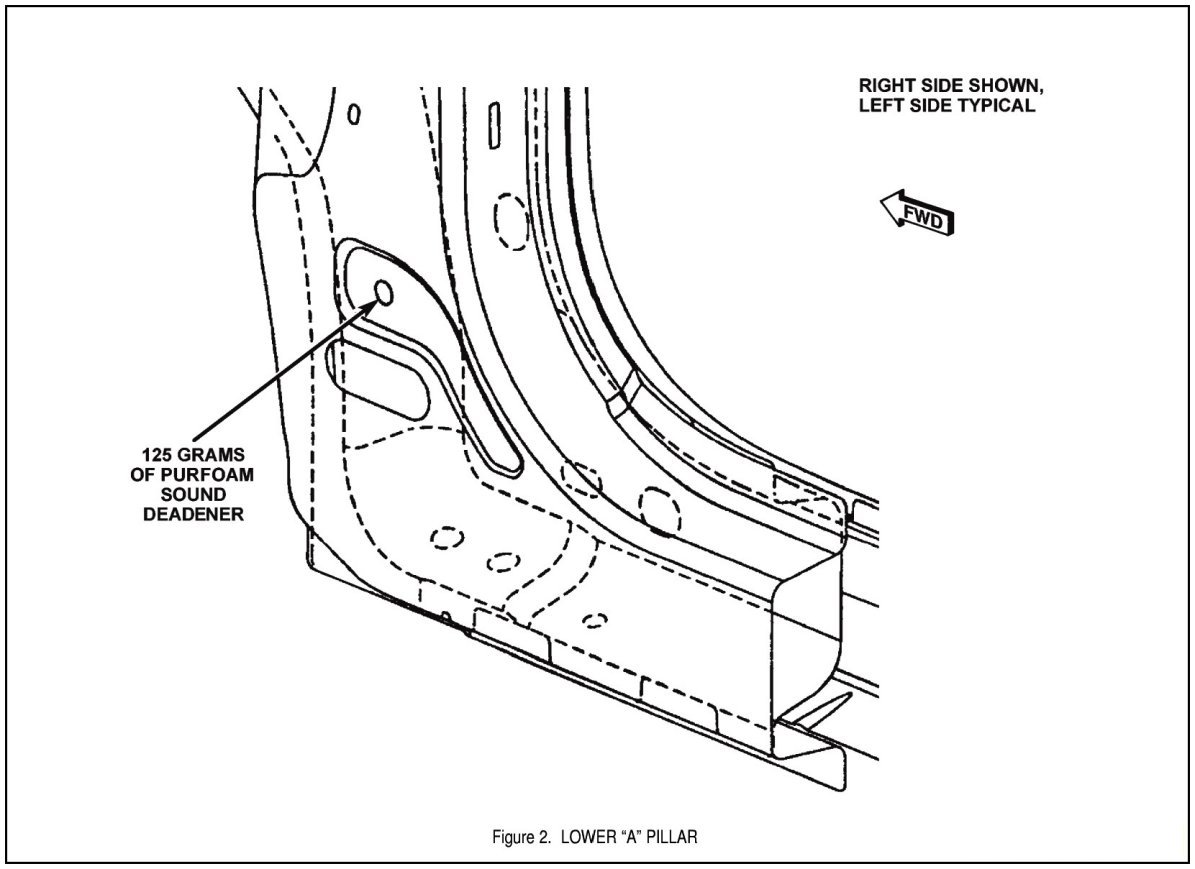

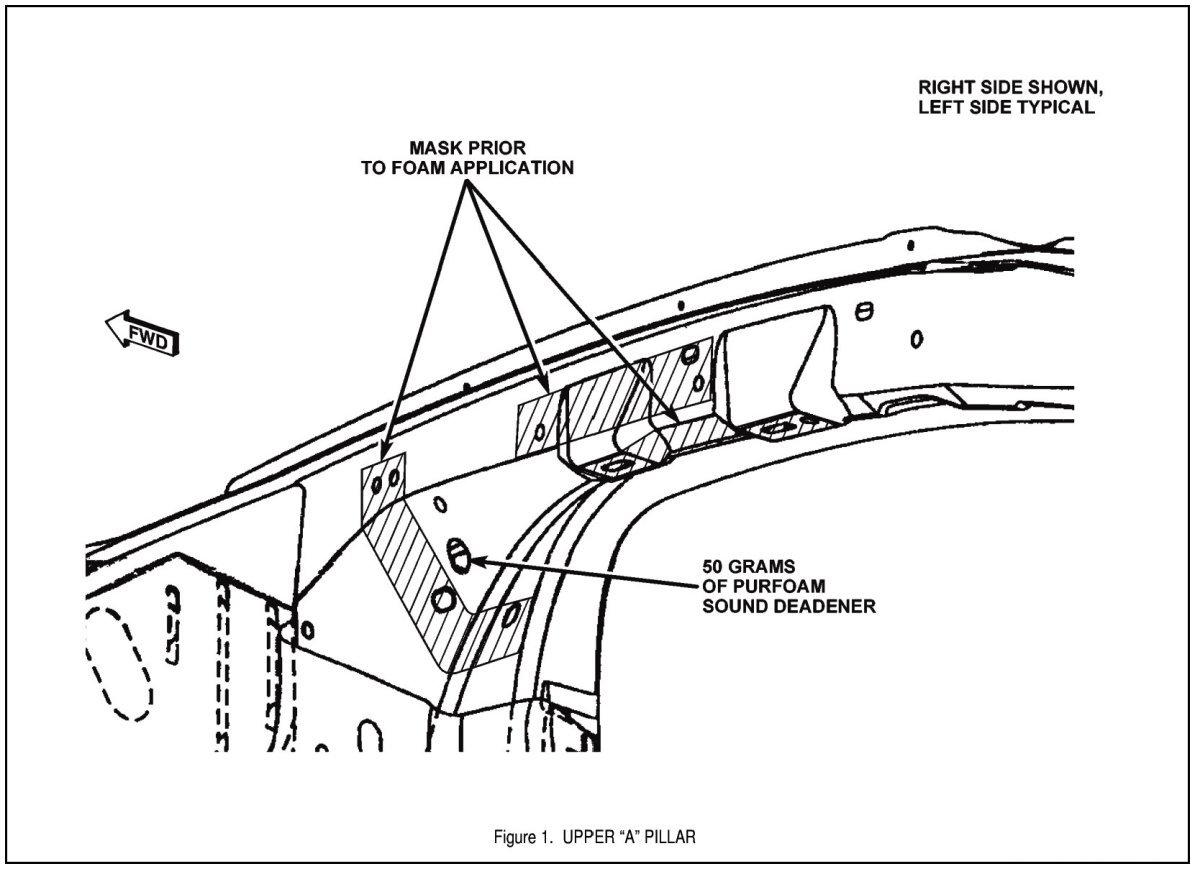

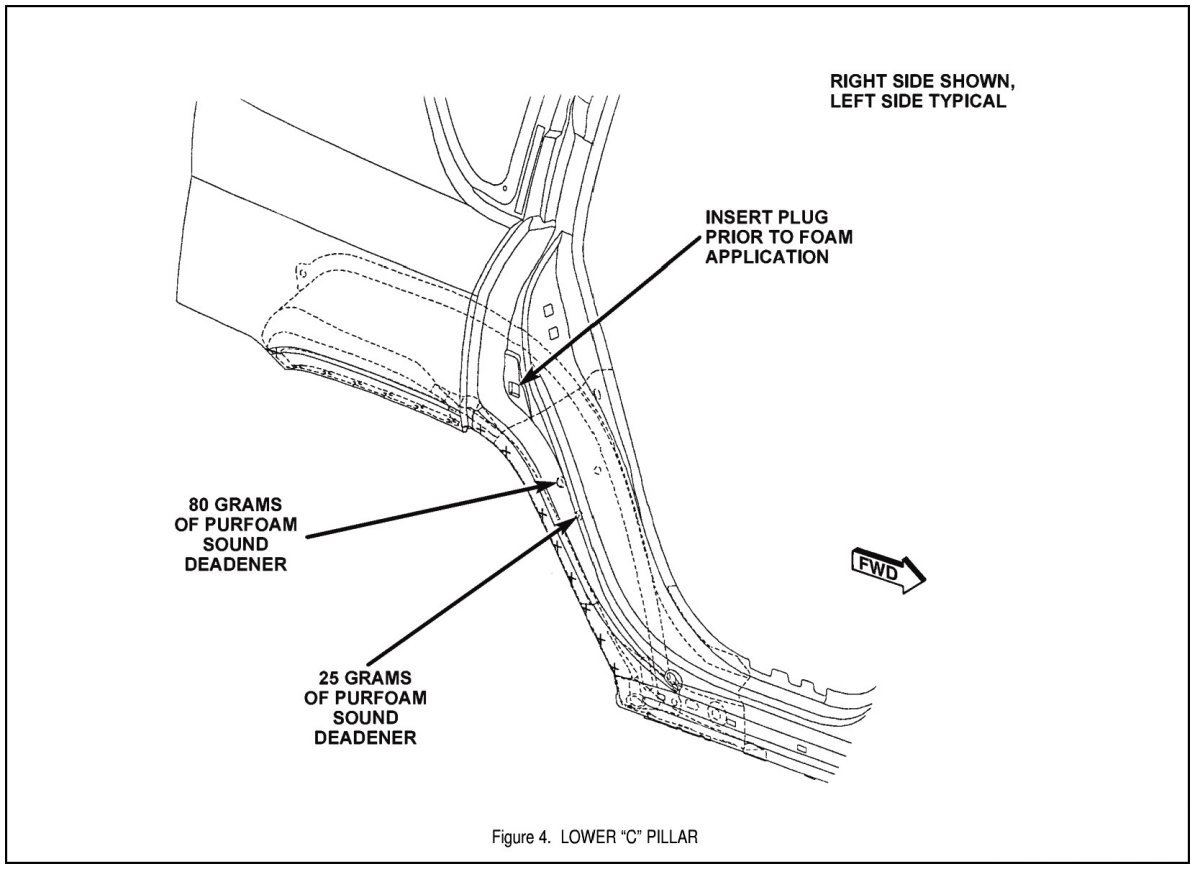

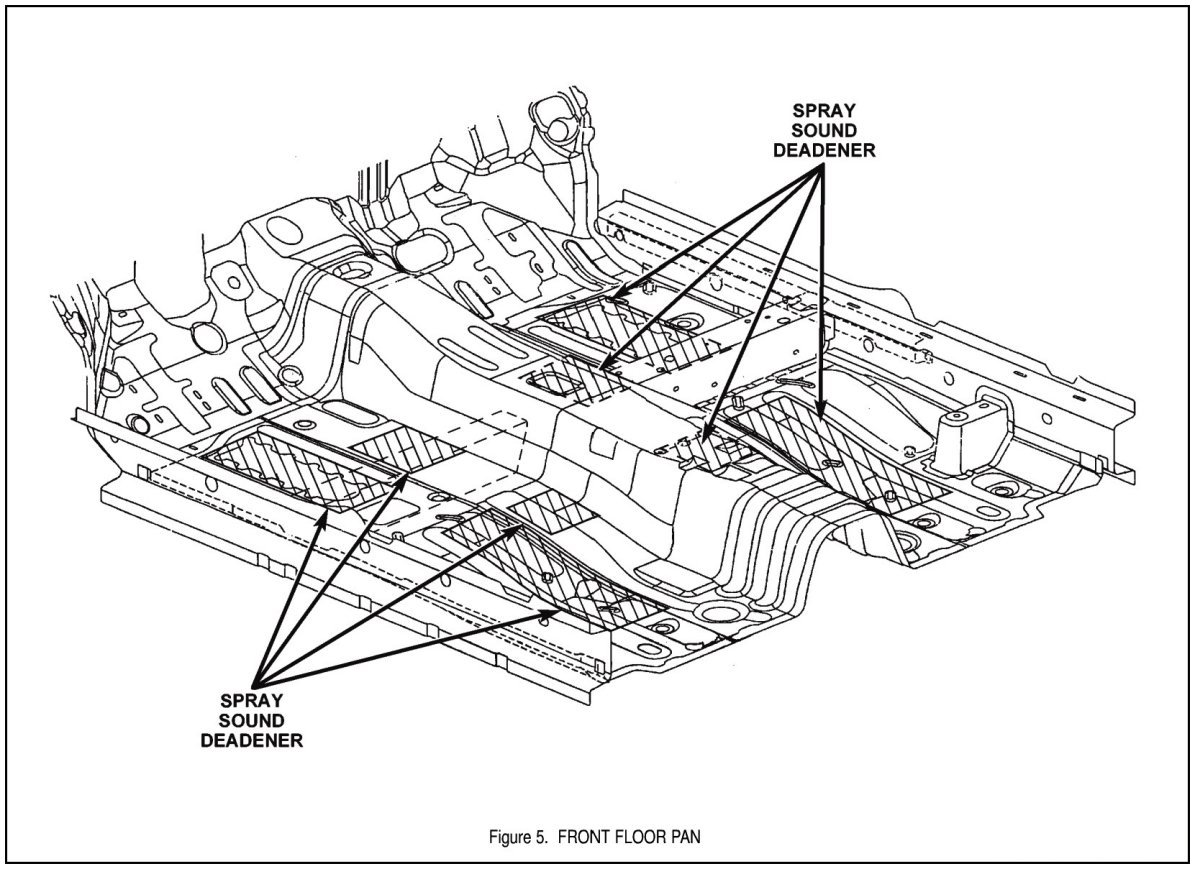

NVH/STRUCTURAL FOAM/SOUND DEADENER LOCATIONS


Preferred Mopar Products:

- Expandable Foam - Part No. 05142864AA
- Dispenser - Part No. 05016570AA
