Home >> Jeep Truck >> 2009 >> Compass 2WD L4-2.0L >> Repair and Diagnosis >> Body and Frame >> Seats >> Seat Temperature Element >> Diagrams >> Left Seat Back Heater (Component Side) (Left Seatback Pigtail) 2 Way

Left Seat Back Heater (Component Side) (Left Seatback Pigtail) 2 Way

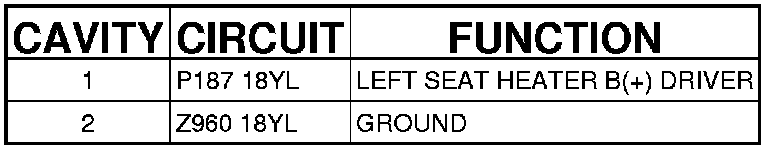

Connector (COMPONENT SIDE) - (LEFT SEATBACK PIGTAIL) 2 WAY

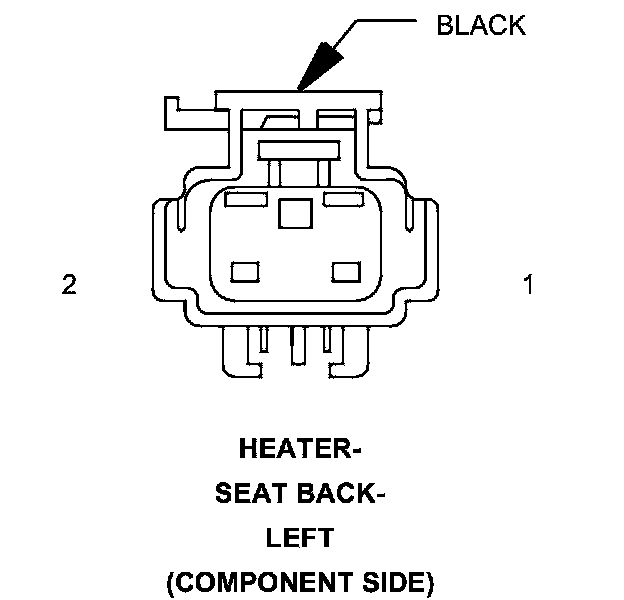

HEATER-SEAT BACK-LEFT (COMPONENT SIDE) - (LEFT SEATBACK PIGTAIL) 2 WAY
