Seats: Description and Operation

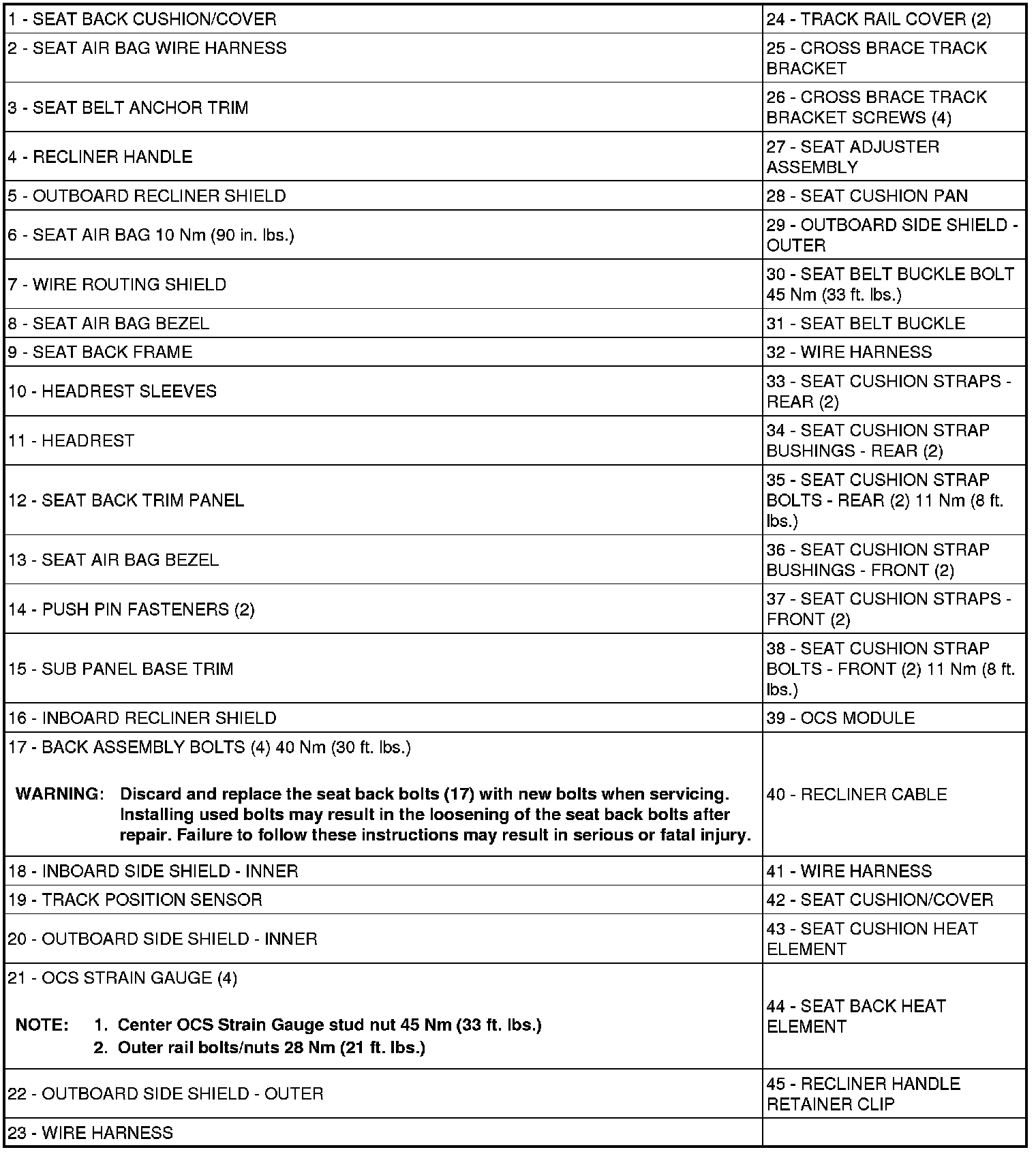

DESCRIPTION

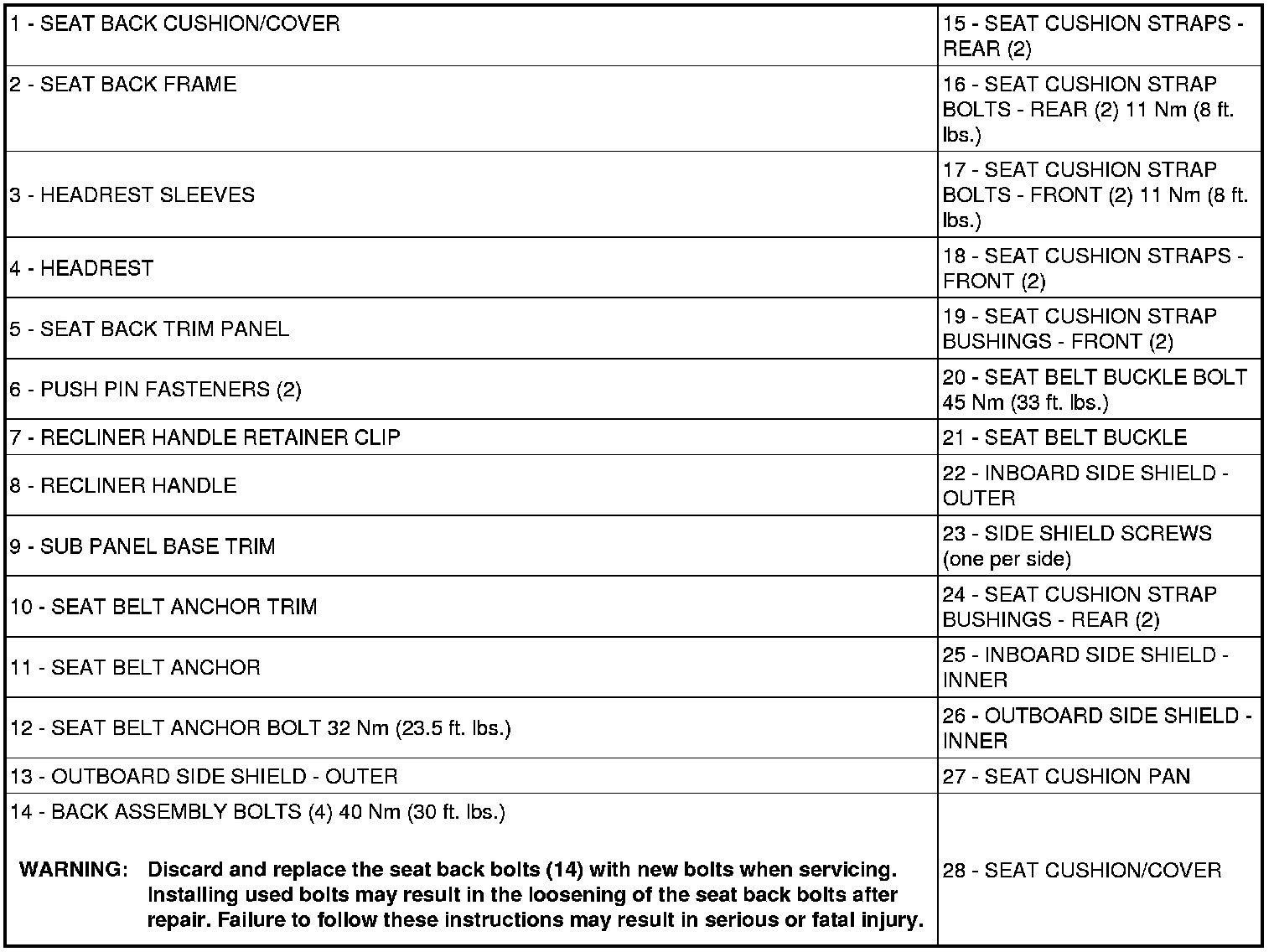

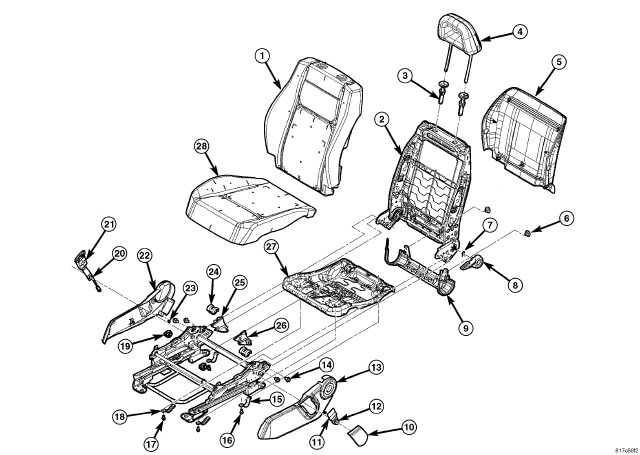

2-WAY DRIVER SEAT

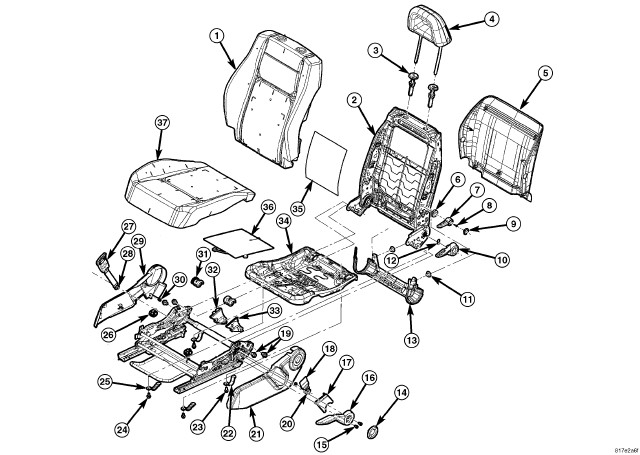

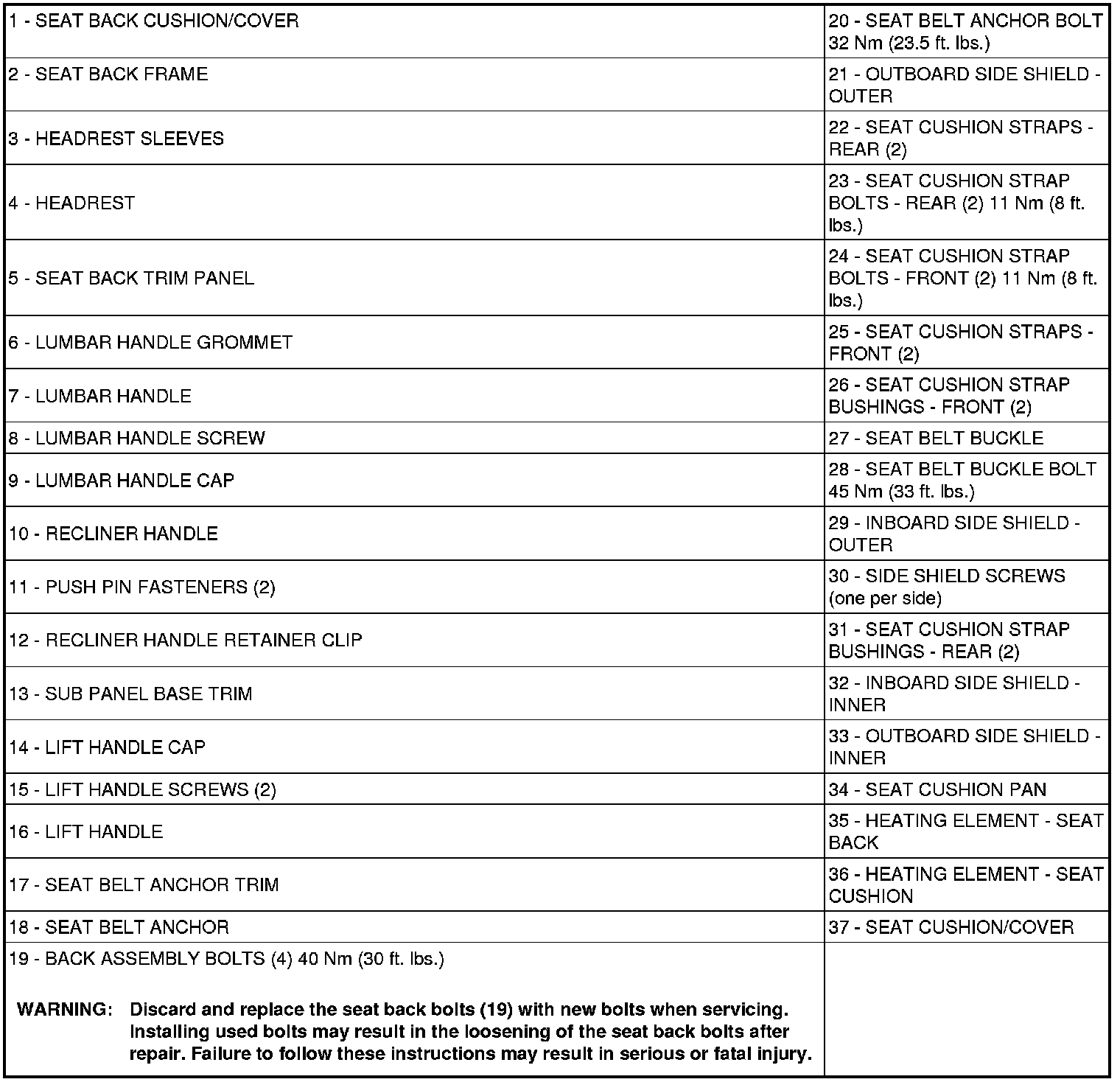

4-WAY DRIVER SEAT

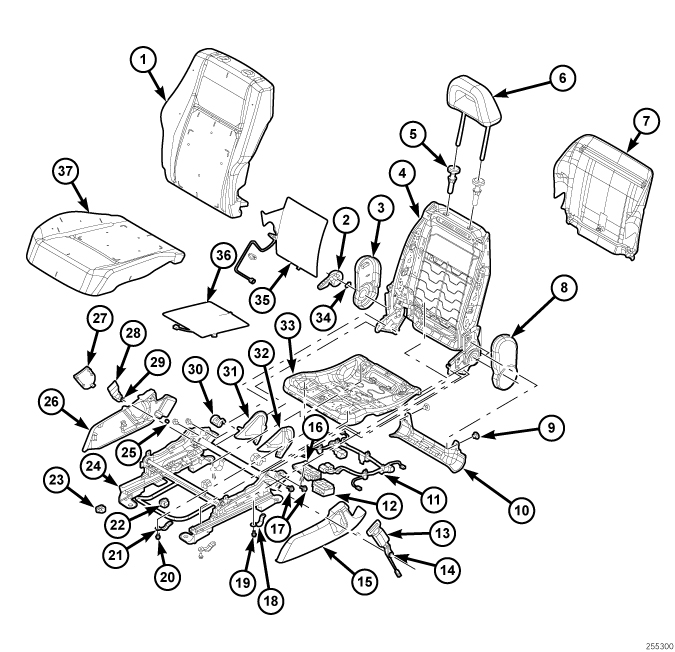

PASSENGER FOLD FLAT SEAT

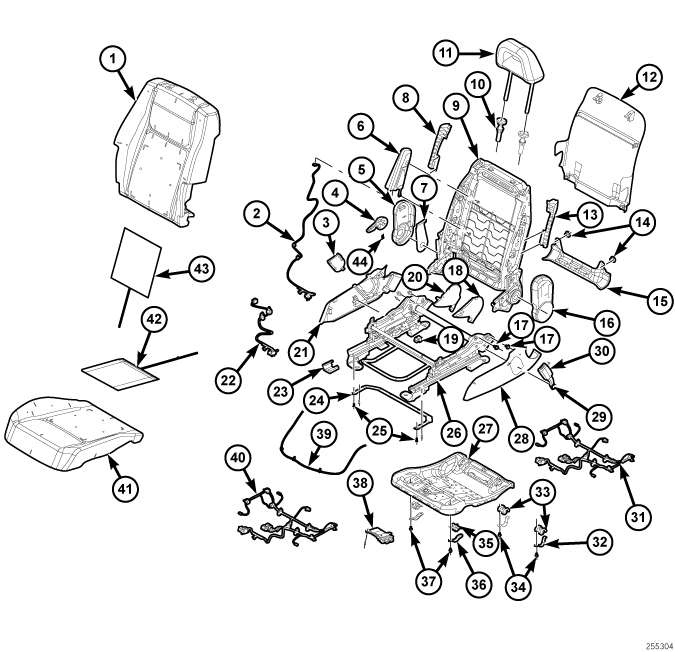

PASSENGER FOLD FLAT W/AIR BAG

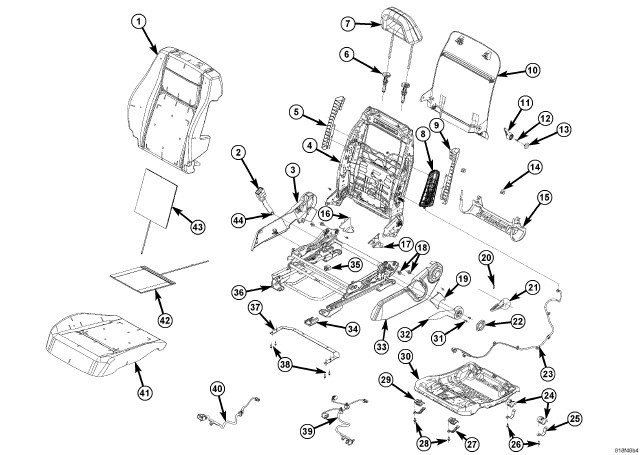

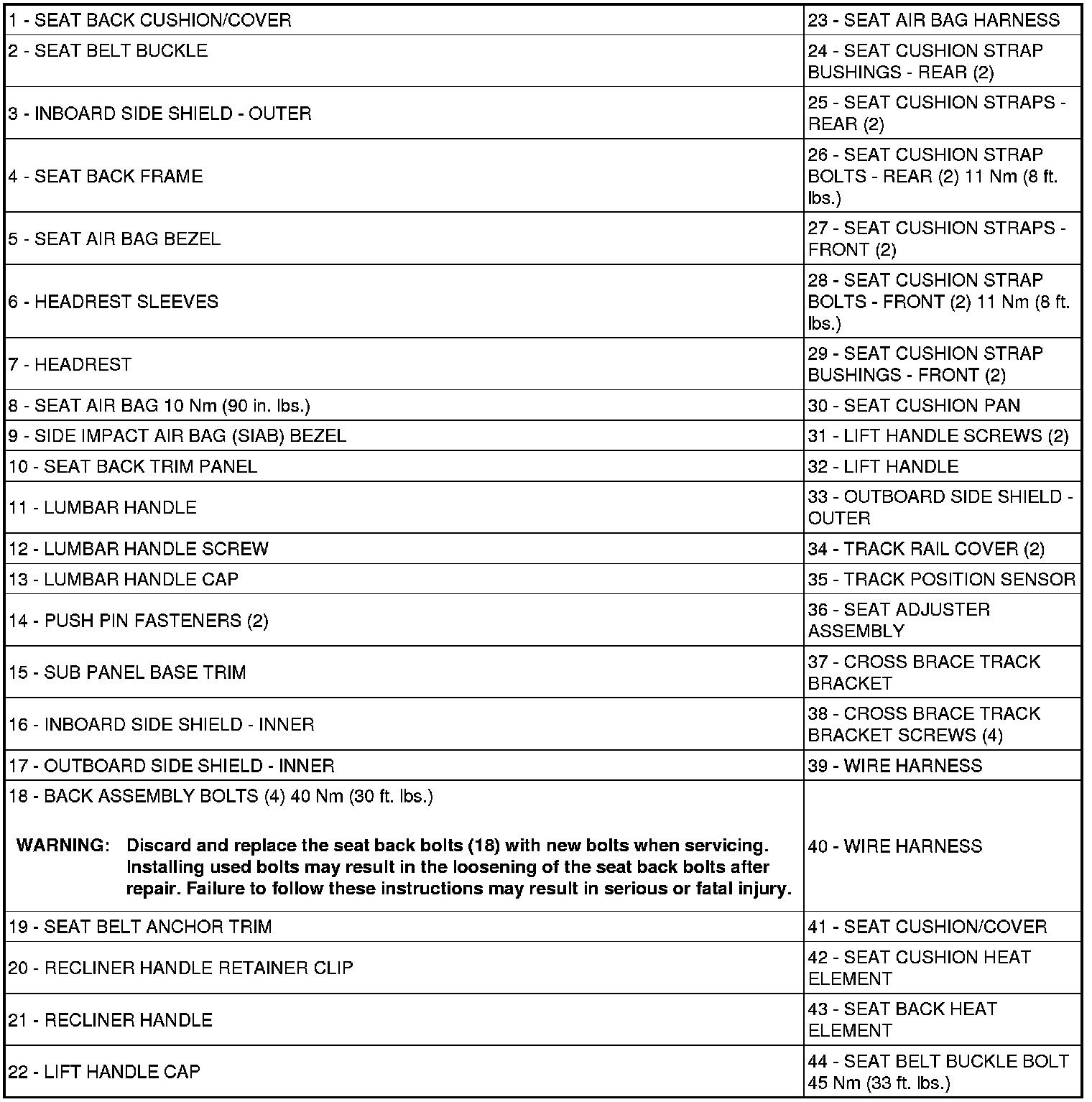

4-WAY DRIVER W/AIR BAG
