Right Rear Door Latch (Right Rear Door) 4 Way
Right Rear Door Latch (Right Rear Door) 4 Way

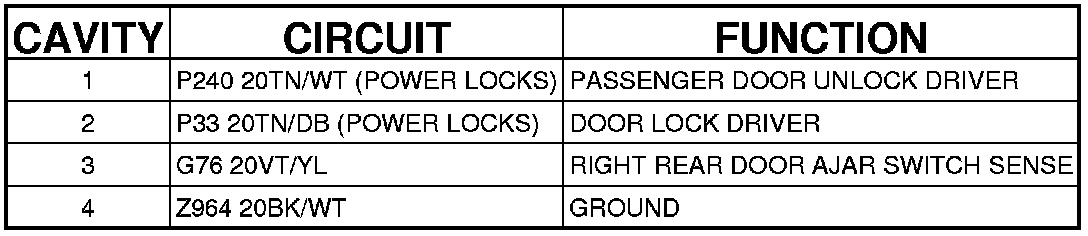

Connector (LHD) - (RIGHT REAR DOOR) 4 WAY

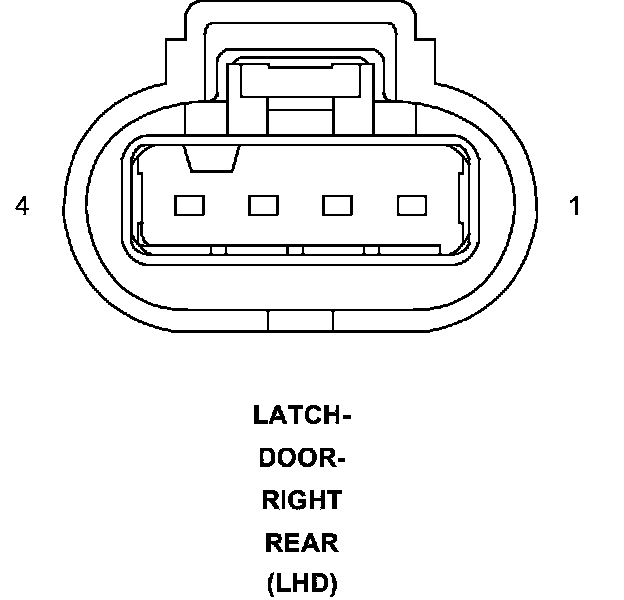

LATCH-DOOR-RIGHT REAR (LHD) - (RIGHT REAR DOOR) 4 WAY
