Driver Door Latch (Left Front Door) 4 Way
Driver Door Latch (Left Front Door) 4 Way

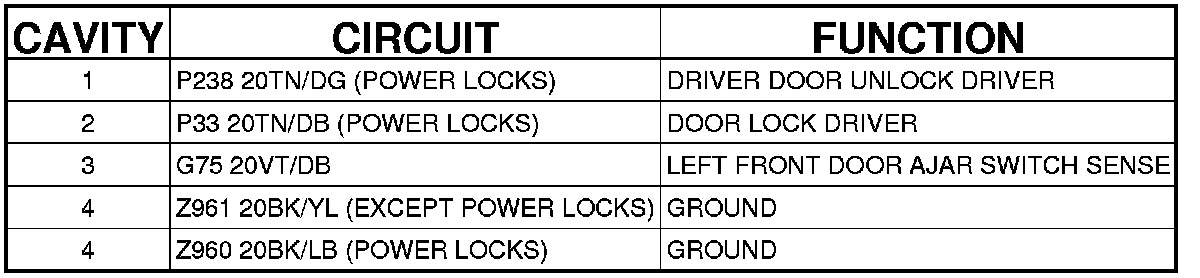

Connector (LHD) - (LEFT FRONT DOOR) 4 WAY

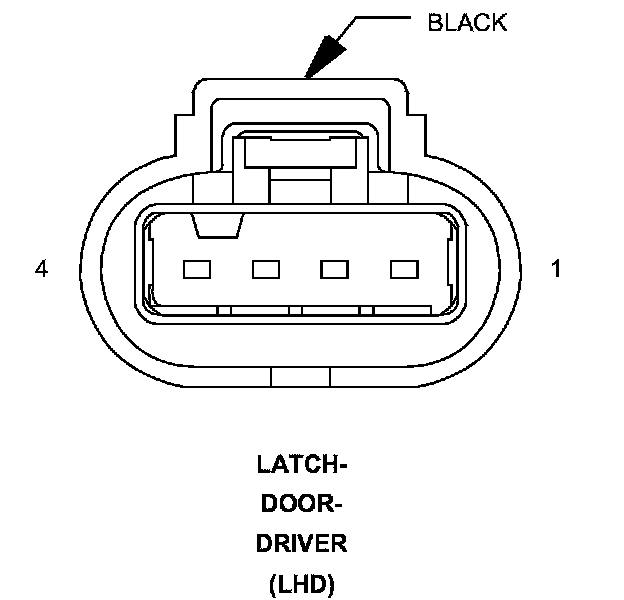

LATCH-DOOR-DRIVER (LHD) - (LEFT FRONT DOOR) 4 WAY
