Carpet - Installation

INSTALLATION

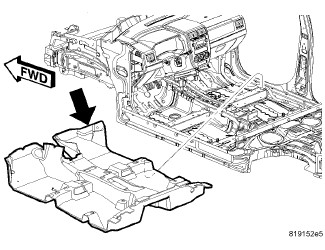

1. Install the carpet,

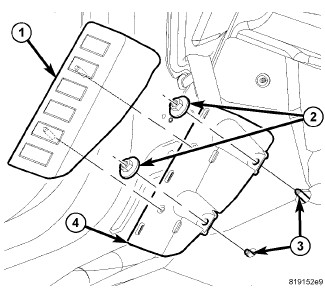

2. Install the footrest (4), the nuts (2), and the cover (1).





3. Install the quarter trim panels (2), Quarter Trim Panel - Installation.





4. Install the liftgate scuff plate (1), Scuff Plate - Installation.





5. Install the cowl side trim panels (1), Cowl Trim Panel - Installation.





6. Install the door scuff plates (3), Floor Console - Installation.





7. Install the lower B-pillar trim (2), B-Pillar Trim Panel-Installation

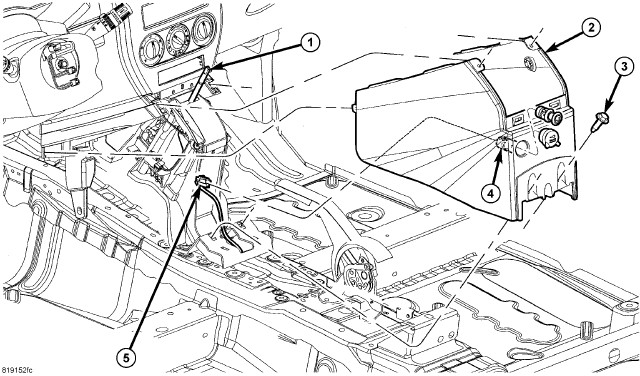

8. Install the shifter housing (2), Floor Console - Installation.





9. Install the floor console (1), Floor Console - Installation.





10. Install the rear seat backs (3), Seat Back - Installation.





11. Install the front seats (1), Seat - Installation.
12. Connect battery negative cable.
