Liftgate Trim Panel - Installation

INSTALLATION

Liftgate Trim and Speaker Panel





NOTE: Caliber shown, Compass and Patriot similar.

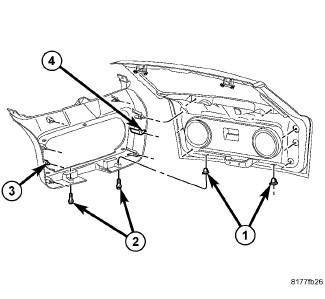

1. Connect the electrical connectors (2 and 3) and position the speaker panel assembly (1) into place.

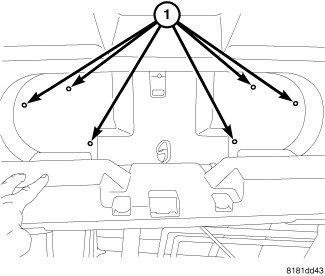

2. Install the mounting screws (1) and close the speaker panel.





3. Position the trim panel (3) back into place and seat the fastener clips (4) fully.
4. Install the two lower screws (2).

Liftgate Trim Panel





NOTE: Caliber shown, Compass and Patriot similar.

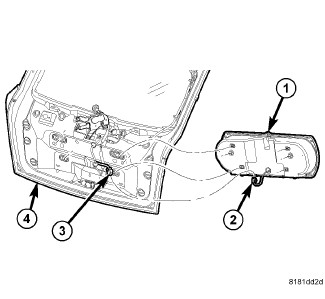

1. Position the trim panel (3) back into place and seat the fastener clips (4) fully.
2. Install the two lower screws (2).

Liftgate Panel





NOTE: Caliber shown, Compass similar.

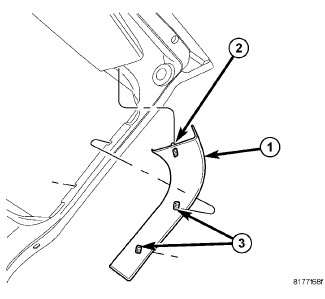

1. Position the side panels (1) into place and seat the fastener clips (2 and 3) fully.

Patriot

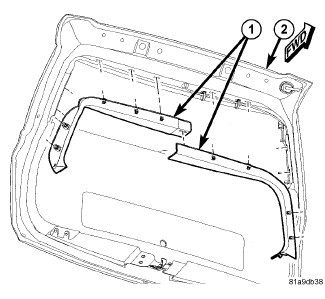

1. Position the side panels (1) into place and seat the fastener clips fully.

Liftgate Header Panel





NOTE: Caliber shown, Compass and Patriot similar.

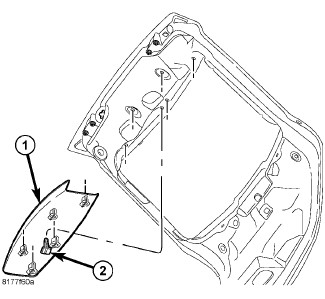

1. Position the upper trim panel (1) into place and seat the fastener clips (2) fully.
