B222A

B222A-VEHICLE LINE MISMATCH

For a complete wiring diagram, refer to the Wiring Information Electrical Diagrams.

- When Monitored:
With the ignition on.

- Set Condition:
The Hands Free Module will receive and monitor the vehicle line message from the PCM and record the vehicle line if different from the last vehicle line.





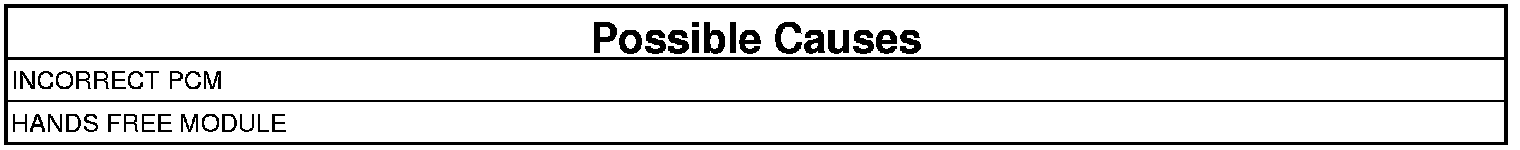

1. CHECK FOR ACTIVE DTC
1. With the scan tool, read the active DTCs.
2. Cycle the ignition switch from off to on at least 5 times, leaving the ignition on for a minimum of 90 seconds per cycle.
3. With the scan tool, read the active DTCs.

Does the scan tool display this DTC as active?

Yes

- Go To 2

No

- If the DTC is stored, check for an intermittent condition. Visually inspect the related wiring harness connectors. Look for broken, bent, pushed out, or corroded terminals.
- Perform the BODY VERIFICATION TEST. Body Verification Test

2. CHECK VEHICLE LINE IN PCM
1. With the scan tool compare the vehicle line that is programmed into the PCM to the vehicle line of the vehicle.

Does the vehicle line programmed into the PCM match the vehicle?

Yes

- Inspect the wiring and connectors for damage or shorted circuits. If OK, replace and program the Hands Free Module.
- Perform the BODY VERIFICATION TEST. Body Verification Test

No

- Replace and program the Powertrain Control Module. Ensure the PCM is replaced with the correct vehicle line PCM.
- Perform POWERTRAIN VERIFICATION TEST. PCM Verification Test
