B1B70

B1B70-UP-FRONT LEFT SATELLITE ACCELERATION SENSOR INTERNAL





For a complete wiring diagram, refer to the Wiring Information Electrical Diagrams.

- When Monitored:
With the ignition on, the Front Left Impact Sensor is equipped with on board diagnostics to monitor to sensor's internal circuits. If a problem is identified, the sensor sends the Front Left Impact Sensor Internal message to the Occupant Restraint Controller (ORC).

- Set Condition:
This DTC will set if the ORC receives an internal DTC from the Front Left Impact Sensor.





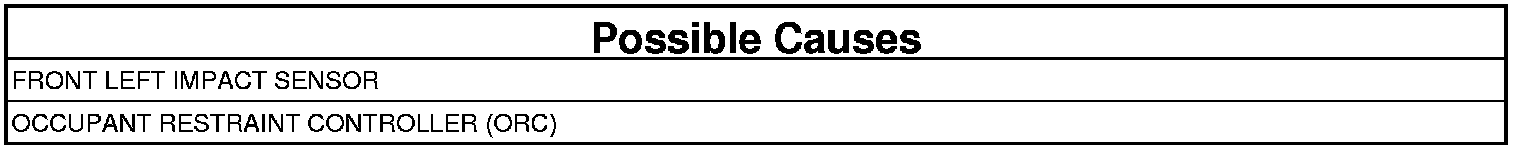

1. DETERMINE ACTIVE OR STORED FAULT CODE

NOTE: Make sure the battery is fully charged.

1. Turn the ignition on.
2. With the scan tool, read the active ORC DTCs.

Is the DTC: B1B70-UP-FRONT LEFT SATELLITE ACCELERATION SENSOR INTERNAL active?

Yes

- Go To 2

No

- Go To 4

2. VERIFY OPERATION OF THE FRONT LEFT IMPACT SENSOR

WARNING: Turn the ignition off disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

1. Replace the Front Left Impact Sensor.
2. Reconnect the vehicle wire harness to the sensor.
3. Remove any special tools or jumper wires and reconnect all previously disconnected components - except the Battery.

WARNING: Turn the ignition on, then reconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

4. Use the scan tool and erase the stored codes in all airbag system modules.
5. Turn the Ignition Off, and wait 15 seconds before turning the Ignition On.
6. Wait one minute, and read active codes.

Did the active DTC: B1B70-UP-FRONT LEFT SATELLITE ACCELERATION SENSOR INTERNAL return?

Yes

- Go To 3

No

- Repair is complete.
- Perform the AIRBAG SYSTEM VERIFICATION TEST. Airbag System Verification Test.

3. REPLACE THE OCCUPANT RESTRAINT CONTROLLER

WARNING: Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

WARNING: If the airbag control module is dropped at any time, it must be replaced. Failure to take the proper precautions could result in accidental airbag deployment and serious or fatal injury.

Repair

- Replace the ORC.
- Perform the AIRBAG SYSTEM VERIFICATION TEST. Airbag System Verification Test.

4. TEST FOR AN INTERMITTENT CONDITION
1. With the scan tool, record and erase all DTCs from all Airbag modules.
2. If any ACTIVE codes are present they must be resolved before diagnosing any stored codes.

WARNING: Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

3. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.
4. Look for chafed, pierced, pinched, or partially broken wires and broken, bent, pushed out, spread, corroded, or contaminated terminals.
5. The following additional checks may assist you in identifying a possible intermittent problem.
6. Reconnect any disconnected components and harness connector.

WARNING: Turn the ignition on, then reconnect the 12-volt battery. Wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

7. With the scan tool, monitor active codes as you work through the following steps.

WARNING: Maintain a safe distance from all airbags while performing the following steps. Failure to follow these instructions may result in possible serious or fatal injury.

8. Wiggle the wiring harness and connectors of the related airbag circuit or component.
9. If codes are related to the Driver Airbag circuits, rotate the steering wheel from stop to stop.
10. If only stored codes return continue the test until the problem area has been isolated.
11. In the previous steps you have attempted to recreate the conditions responsible for setting active DTC in question.

Are any ACTIVE DTCs present?

Yes

- Perform the appropriate DTC diagnostic procedure. Testing and Inspection.

No

- No problem found at this time. Erase all codes before returning vehicle to customer.
