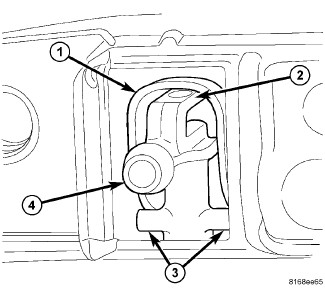

1. Position the nozzle into the receptacle (1) integral to the back of the CHMSL lens with the alignment pins (3) on the nozzle engaged in the saddle-like formations on each lower side wall of the receptacle.
2. Using hand pressure, press the nozzle nipple (4) upward firmly and evenly into the receptacle until the integral latch feature (2) is fully engaged on the back of the CHMSL lens.
3. Reconnect the rear washer supply hose to the barbed nipple of the nozzle.
4. Reinstall the CHMSL onto the liftgate outer panel. Center Mounted Brake Lamp - Installation.
5. Reconnect the battery negative cable.
