Rear Door Glass - Installation

INSTALLATION

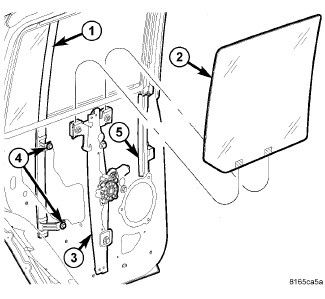

1. Carefully lower the door glass into the rear door through the window opening.
2. Rotate the door glass into position and engage it to the window regulator glass clamps.
3. Using the regulator (2), move the rear door glass to full up.
4. Tighten the bolts in each of the window regulator glass clamps to 12 Nm (105 in. lbs.).
5. Install the glass run channel Rear Door Glass Channel - Installation.





6. Install the watershield onto the inside of the rear door Watershield - Installation.
7. Position and seat the inner belt molding fully.
