Front Door Glass - Removal

REMOVAL





1. Using the regulator move the front door glass up or down as required to access the two window regulator glass clamp bolts.

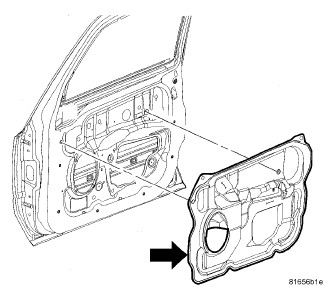

2. Remove the watershield from the inside of the front door. Front Door WaterShield - Removal

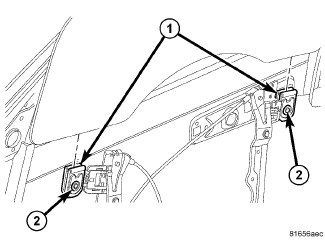

3. Loosen the bolt (2) in each of the window regulator glass clamps (1) just far enough to release the door glass from the clamps. Do not loosen completely.





4. Disengage the door glass from the window regulator glass clamps by lowering the regulator down as required for access to remove the door glass.

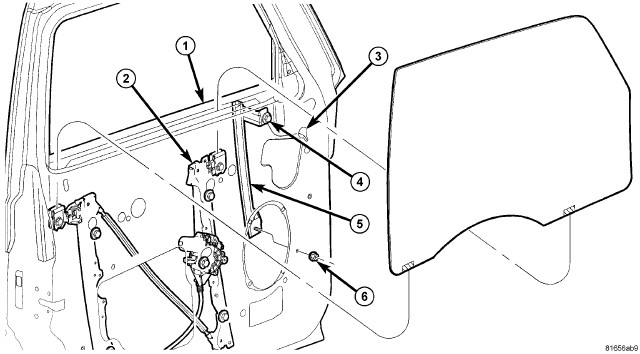

5. Carefully rotate the door glass within the window opening and remove the glass from the door through the window opening.
